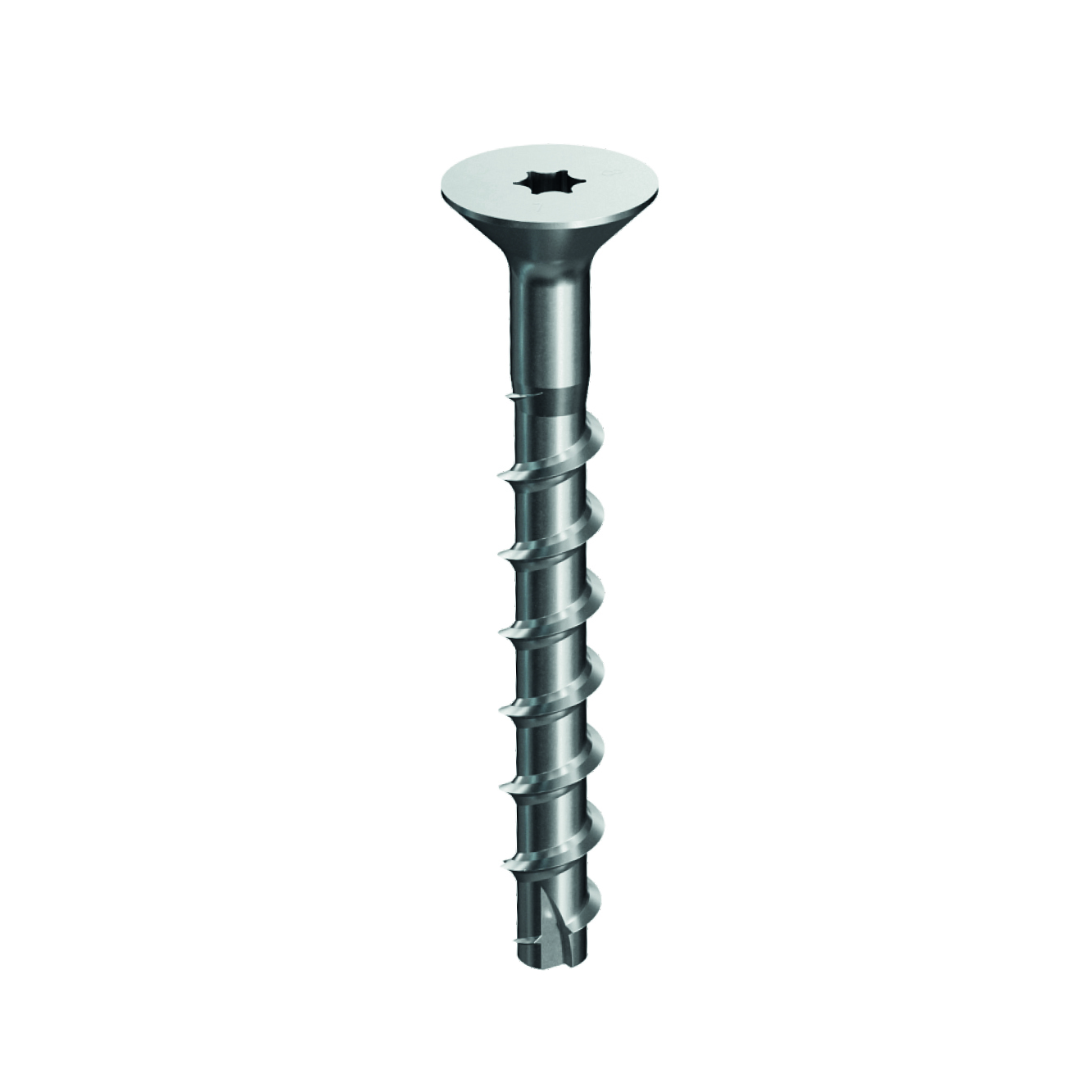

CLR Plus SK A4
Countersunk Concrete Screws Stainless Steel A4
The stainless steel countersunk head is often used in corrosive environments when the screw must remain flush with the object to be fixed, for aesthetical reasons or to avoid interferences above it.

CE Marking

ETA

Seismic C1
Product Details
Application
Material
- A4 Stainless steel
Suitable on
- Cracked and uncracked concrete
Technical Data
Product dimensions
| Reference | Metallic fixings dimensions | ||||||
|---|---|---|---|---|---|---|---|
| Item code | Other | Product Dimensions[mm] | |||||
| Hole diameter [dₒ][mm] | Fixing thickness (tfix) for reduced embedment depth (hef,r) | Fixture thickness [tfᵢₓ] (¹)[mm] | Fixing thickness (tfix) for increased embedment depth (hef,max) | Qty per box[pcs] | Dim[mm] | ||
| CLR Plus SK A4 8x100 | 7210700810000 | 8 | 55 | 45 | 35 | 50.0 | 8x100 |
| CLR Plus SK A4 8x120 | 7210700812000 | 8 | 75 | 65 | 55 | 50.0 | 8x120 |
| CLR Plus SK A4 10x120 | 7210701012000 | 10 | 65 | 45 | 35 | 50.0 | 10x120 |
Certification
European Technical Assessment (ETA)
No history available
No history available
CAD and BIM Library
2D
CLR Plus SK A4 8x100
-
-
-
-
CLR Plus SK A4 10x120
-
-
-
-
CLR Plus SK A4 8x120
-
-
-
-
3D
CLR Plus SK A4 8x100
-
-
-
-
-
CLR Plus SK A4 10x120
-
-
-
-
-
CLR Plus SK A4 8x120
-
-
-
-
-
