CLR Plus SK

Countersunk Concrete Screws

The countersunk head is often used when the screw must remain flush with the object to be fixed, for aesthetical reasons or to avoid intereferences above it.

Technical Data Sheet
CE Marking
CE Marking
ETA
ETA
Seismic C1 C2
Seismic C1 C2

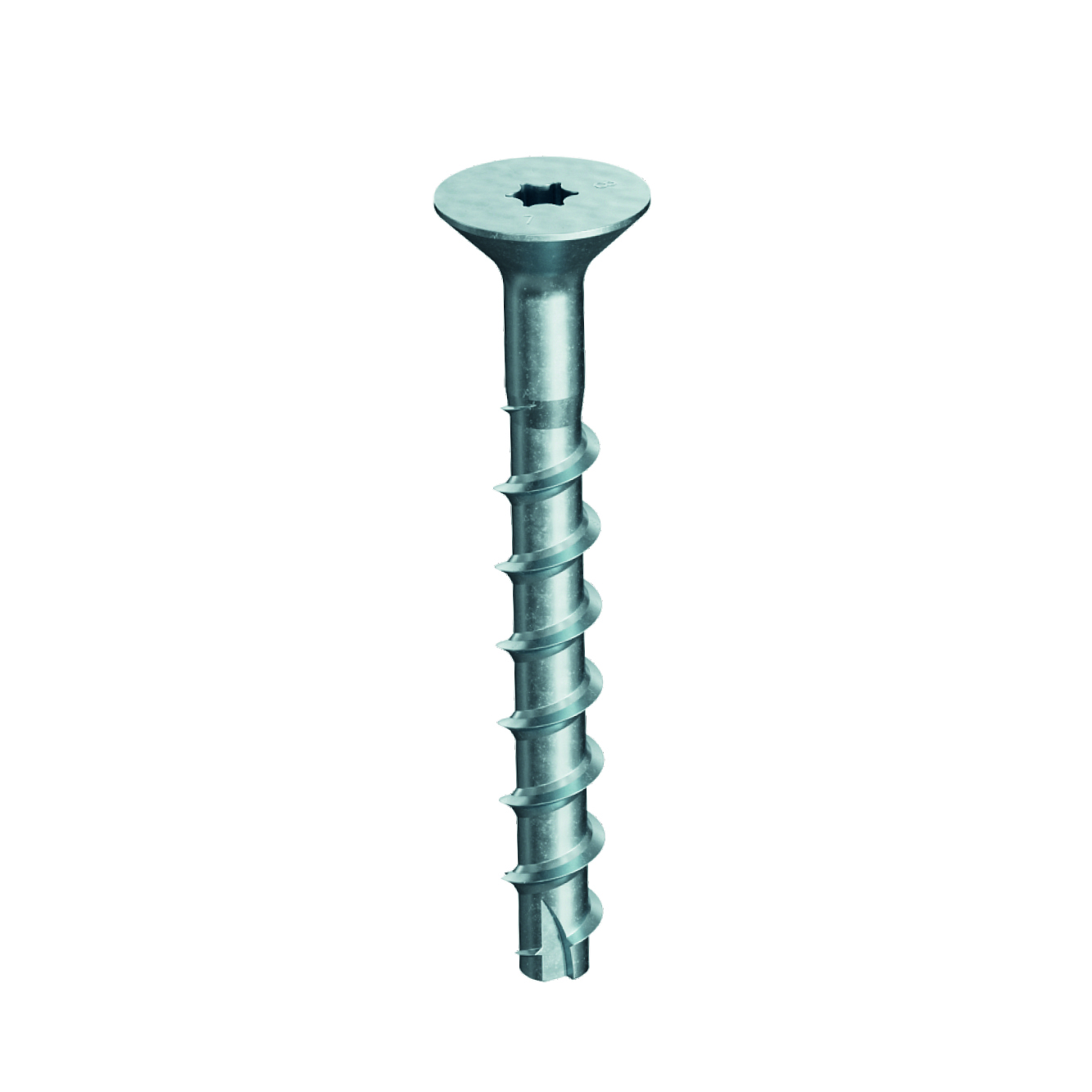

CLR Plus SK main

Product Details

Images

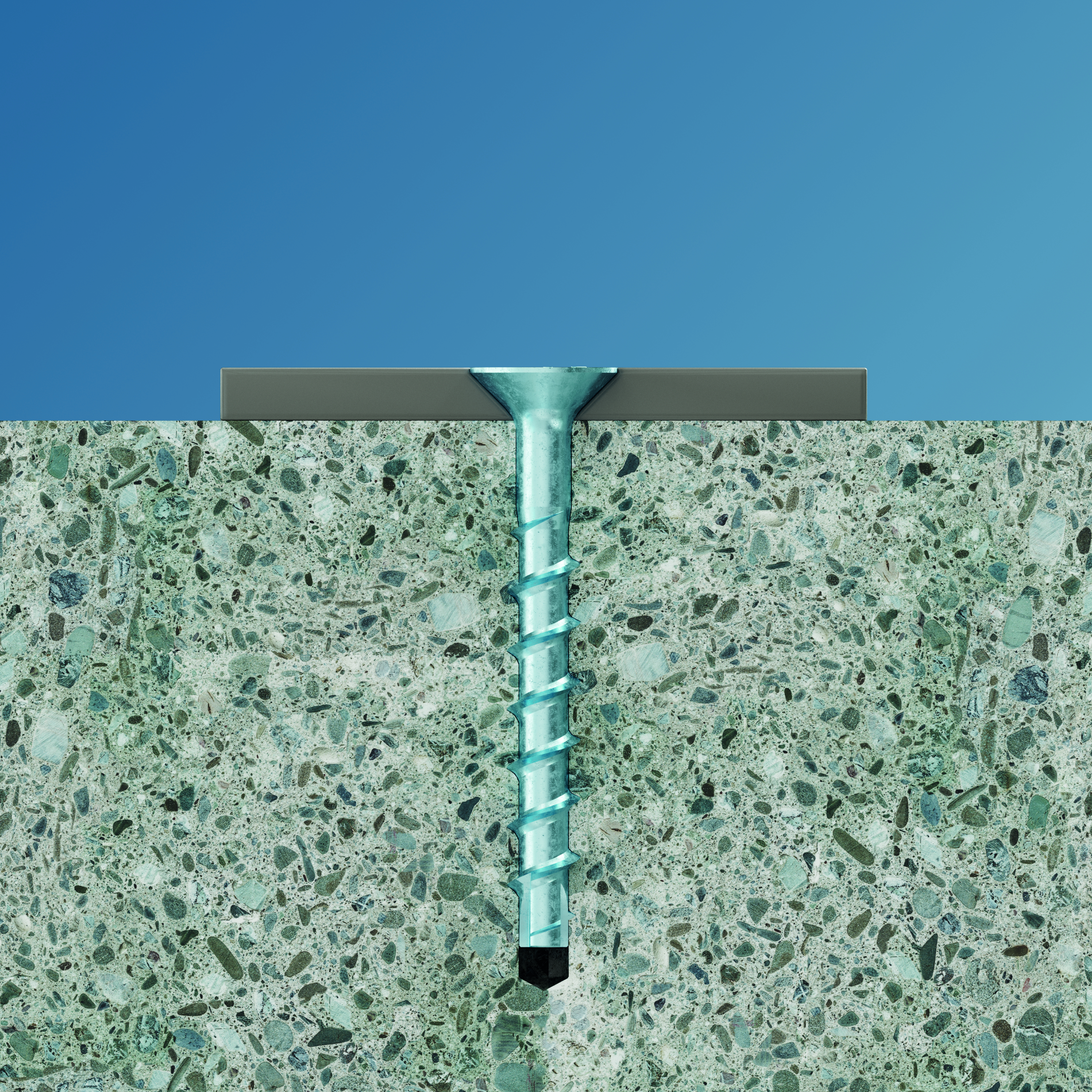

CLR Plus SK application frontal

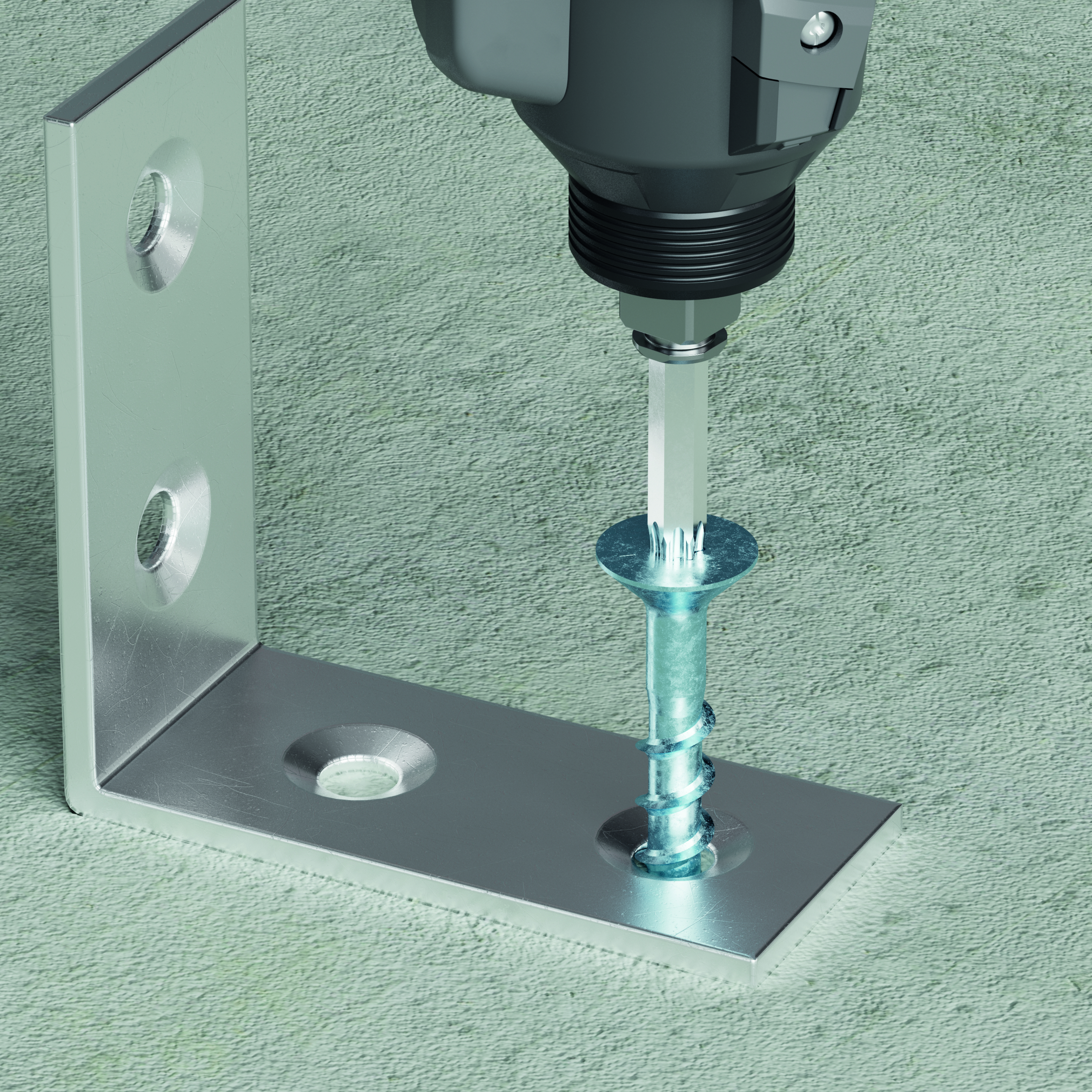

CLR Plus SK application

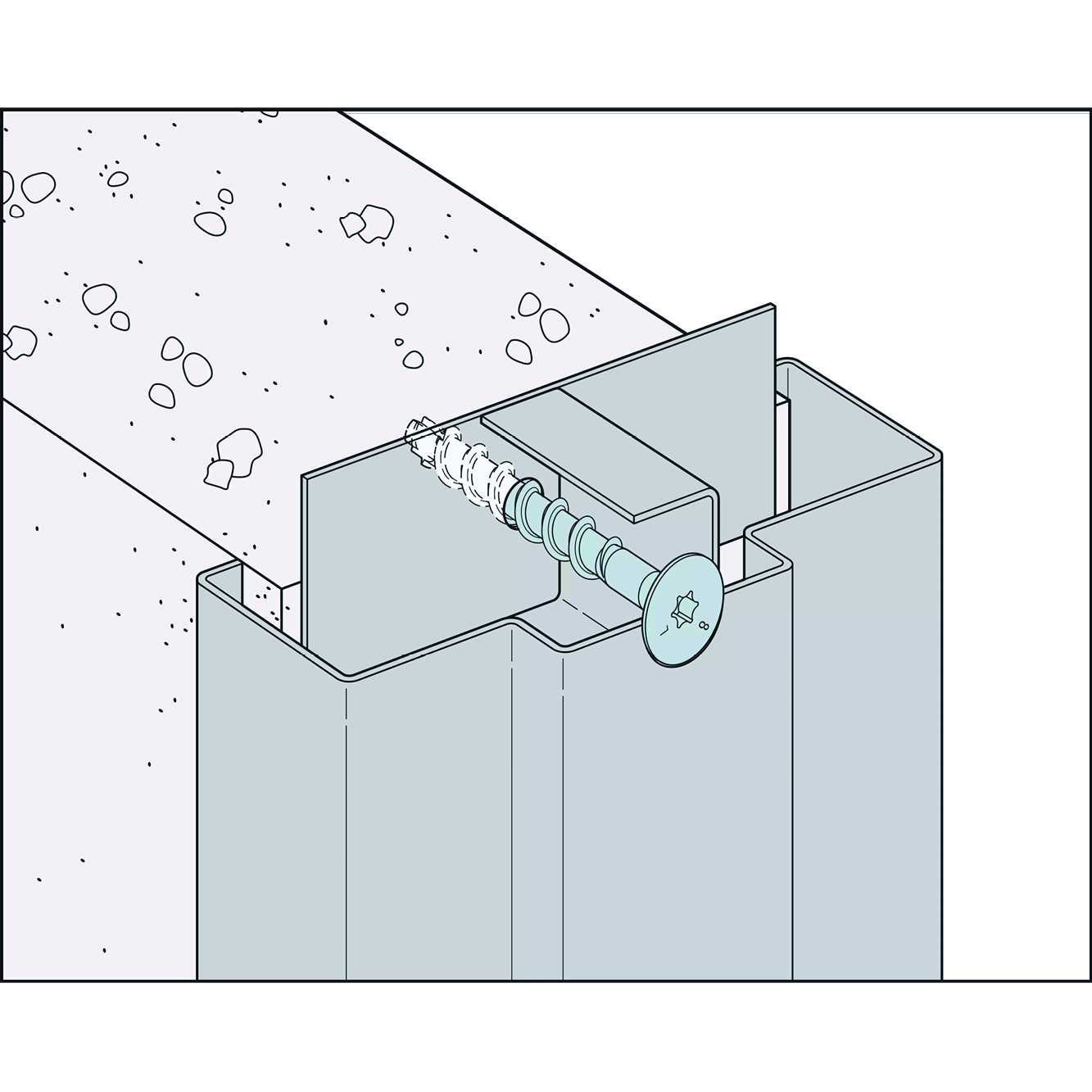

CLR Plus SK Illustration

Application

Material

  • Electro-galvanized steel

Suitable on

  • Cracked and uncracked concrete

Technical Data

Product dimensions

ReferenceMetallic fixings dimensions
Item codeOtherProduct Dimensions[mm]
Hole diameter [dₒ][mm]Fixing thickness (tfix) for reduced embedment depth (hef,r)Fixture thickness [tfᵢₓ] (¹)[mm]Fixing thickness (tfix) for increased embedment depth (hef,max)Qty per box[pcs]Dim[mm]
CLR Plus SK 5x4072107B050400055--100.05x40
CLR Plus SK 5x6072107B0506000525--100.05x60
CLR Plus SK 6x4072107B060400065--100.06x40
CLR Plus SK 6x6072107B0606000625205100.06x60
CLR Plus SK 6x8072107B06080006454025100.06x80
CLR Plus SK 8x8072107B0808000835251550.08x80
CLR Plus SK 8x10072107B0810000855453550.08x100
CLR Plus SK 10x9072107B1009000103515550.010x90
CLR Plus SK 10x10072107B10100001045251550.010x100

Certification

European Technical Assessment (ETA)

eta-25-0131-masonry-en.pdf
No history available
eta-25-0251-option-1-c1-c2-en.pdf
No history available
eta-25-0252-multiple-use-en.pdf
No history available

CAD and BIM Library

2D

CLR Plus SK 10x100

CLR Plus SK 5x40

CLR Plus SK 5x60

CLR Plus SK 6x80

CLR Plus SK 8x80

CLR Plus SK 10x90

CLR Plus SK 8x100

CLR Plus SK 6x40

CLR Plus SK 6x60

3D

CLR Plus SK 10x100

CLR Plus SK 5x40

CLR Plus SK 5x60

CLR Plus SK 6x80

CLR Plus SK 8x80

CLR Plus SK 10x90

CLR Plus SK 8x100

CLR Plus SK 6x40

CLR Plus SK 6x60

ZIP Packages
