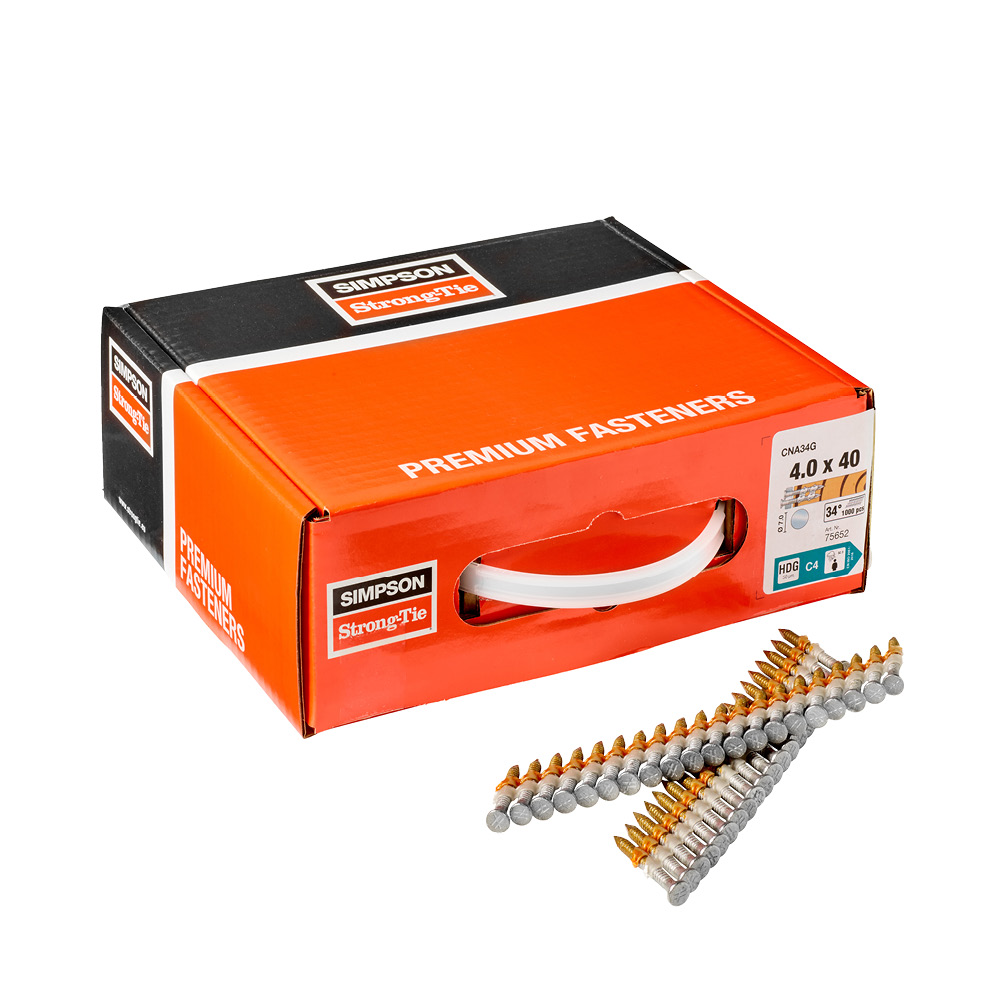

CNA34G

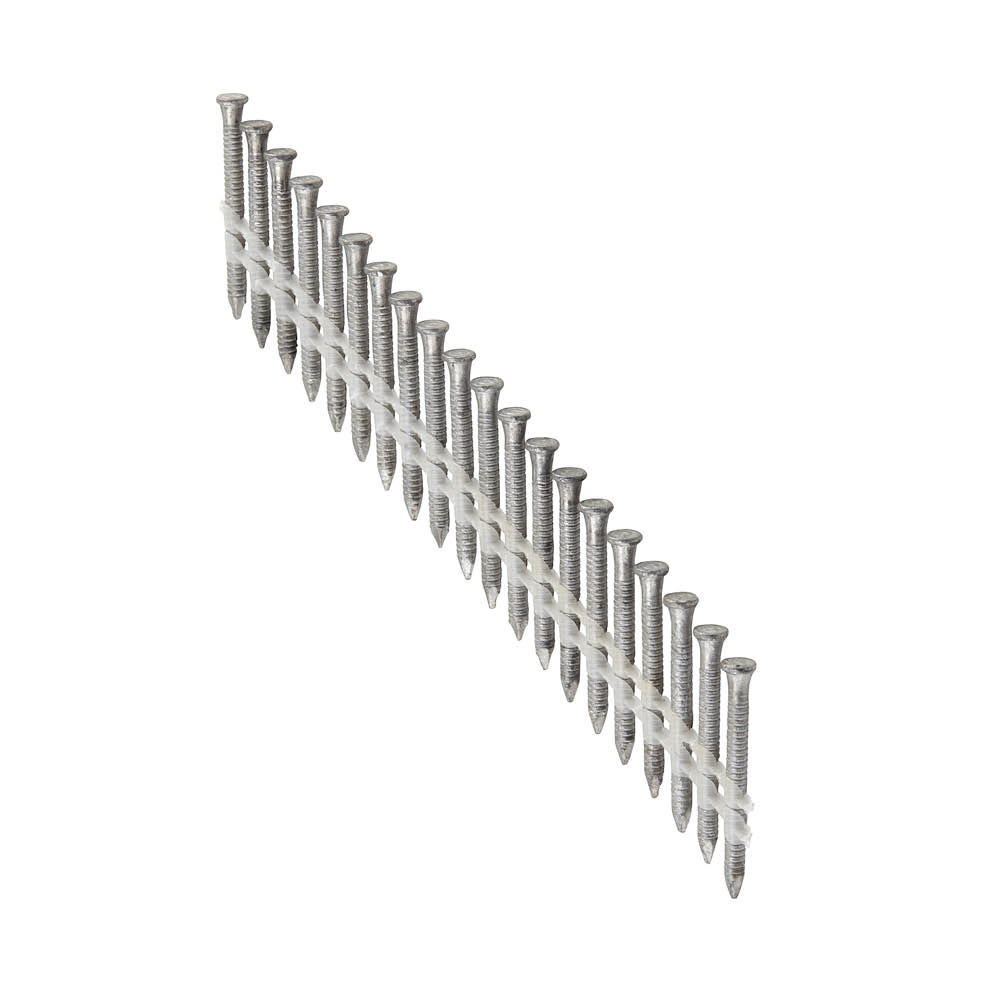

Connector Nail 34° Plastic Strip - Round head, Ring Shank - HDG
The CNA nails are recommended for structural assemblies and to use with Simpson Strong-Tie connectors. The plastic collated nails reduce the time for installation.
CE Marking
ETA
Outdoor
Hot-dip galvanised steel
EPD
Service class 3
Product Details
Images
Features
Application
Technical Data

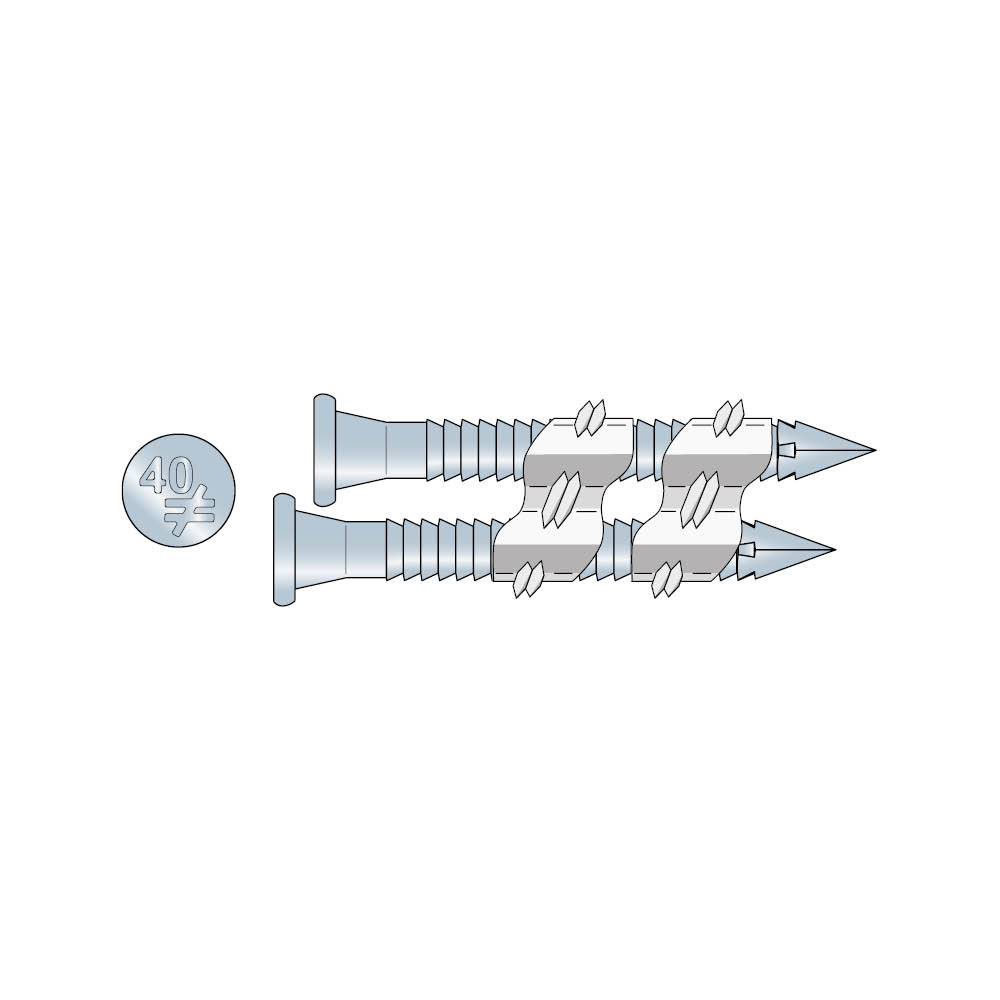

Product dimensions
Dimensions
| Reference | Fasteners Dimensions[mm] | |||||||
|---|---|---|---|---|---|---|---|---|
| Item Code | Other | Fastener dimensions[mm] | ||||||
| Tun / DB nr. | NOB nr. | Qty/box | Weight[kg] | d[mm] | l[mm] | dh[mm] | ||
| CNA34G4.0X40 | 75652 | 2056006 | - | 1000.0 | 0.005 | 4 | 40 | 7 |
| CNA34G4.0X50 | 75653 | 2056007 | - | 1000.0 | 0.006 | 4 | 50 | 7 |
