PVDB

Column Shoes type VARIO

The height and tilt adjustable PVDB column bases can be used for all timber widths between 80-120 / 120-160 mm. The PVDB be dowelled onto concrete.

Technical Data Sheet

CE Marking

ETA

Service class 3

Outdoor

EPD

Hot-dip galvanised steel

Available in Connector Selector

Product Details

Images

Features

Material

Steel quality:

S 235 JR according to DIN EN 10025

Corrosion protection:

completely galvanized after processing; Zinc coating thickness about 55 microns in accordance with DIN EN 1461

Applicable materials

In Stock:
• Concrete

Component:
• Wood, wood products

Application

Application area

• Support feet PVDB (VARIO) are used where the possibility of height adjustment must be given.

Installation

• The column bases are dowelled on concrete
• The connection of the props by means CNA comb nails or for construction purposes with bolts, or with dowels Ø 8 mm.

Technical Data

Dimensions and drill holes

Dimensions

Reference	Connector Dimensions
	Other				Product Dimensions[mm]									Top plate holes		Bottom plate holes
	Tun / DB nr.	NOB nr.	Qty per Box	Weight[kg]	A[mm]	B[mm]	C[mm]	D[mm]	E[mm]	F[mm]	G[mm]	t1[mm]	t2[mm]	Round		Round
	Tun / DB nr.	NOB nr.	Qty per Box	Weight[kg]	A[mm]	B[mm]	C[mm]	D[mm]	E[mm]	F[mm]	G[mm]	t1[mm]	t2[mm]	Ø5	Ø13.5	Porteur[mm]
PVDB80G	1419045	22396790	8	2.5	80-120	70	120	70	160	136 - 189	20	5	8	10	2	2
PVDB120G	1419046	44190932	5	2.6	120-160	70	120	70	160	136 - 189	20	5	8	10	2	2

Characteristic Capacities

Reference	Post base capacity
	Number of Fasteners				Characteristic capacities - Timber C24[kN]

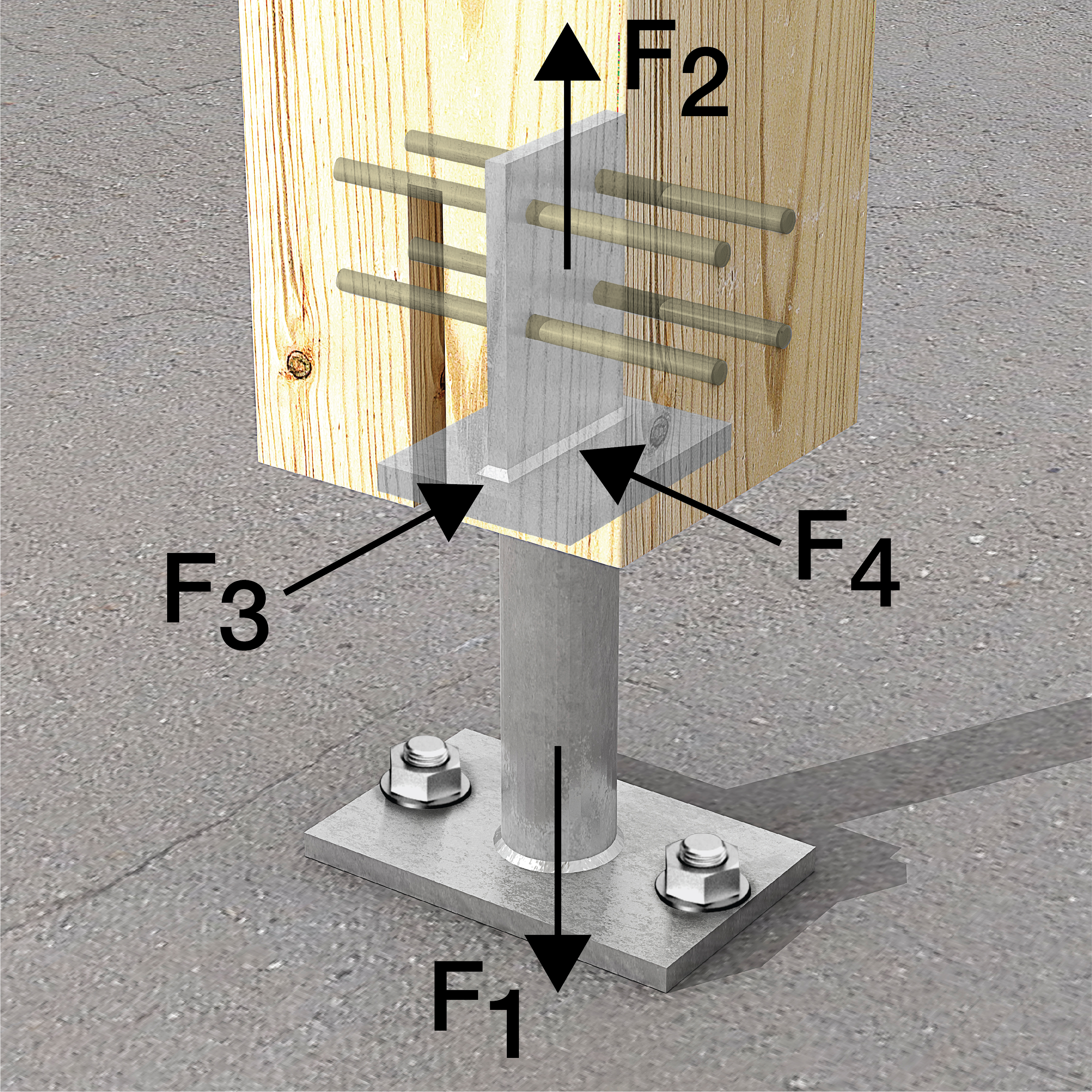

	On post		On concrete		R₁,ₖ	R2,k (2)			R3,k*			R4,k*
	Qty	Type	Qty	Type		Timber width[mm]			g**[mm]			g**[mm]
	Qty	Type	Qty	Type		80	120	160	136	161	186	136	161	186
PVDB80G	10.0	CNA4.0x40	2.0	10	min (77.8 ; 49/kmod)	17.6	min (17.6 ; 11.6/kmod)	min (15.2 ; 7.6/kmod)	1.4/kmod	1.2/kmod	1.1/kmod	3.2/kmod	2.7/kmod	2.3/kmod
PVDB120G	10.0	CNA4.0x40	2.0	10	min (77.8 ; 49/kmod)	17.6	min (17.6 ; 11.6/kmod)	min (15.2 ; 7.6/kmod)	1.4/kmod	1.2/kmod	1.1/kmod	3.2/kmod	2.7/kmod	2.3/kmod

* Dowel length ≥ 80 mm

** g is the distance from top of concrete to bottom of post

Installation

Benefits

• A particular advantage of the height and tilt adjustable PVDB column bases is that the height adjustment can be carried out subsequently, without the support rotates along.
• The PVDB be used for variable timber widths.
• The max. Height adjustment is ± 25 mm from the ideal height.

Certification

Declaration of Performance (DoP)

uk-dop-e07-0285-07.pdf

No history available

European Technical Assessment (ETA)

eta-07-0285-2021-12-09.pdf

No history available

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors
