Connectors
Post bases and caps
PVD

Column Shoes type VARIO

The height and tilt adjustable PVD column bases can be used for all timber widths between 80-120 / 120-160 mm. The PVD are for setting in concrete.

Technical Data Sheet
CE Marking
CE Marking
ETA
ETA
EPD
EPD
Service class 3
Service class 3
Hot-dip galvanised steel
Hot-dip galvanised steel
Outdoor
Outdoor
Available in Connector Selector
Available in Connector Selector

Product Details

Images

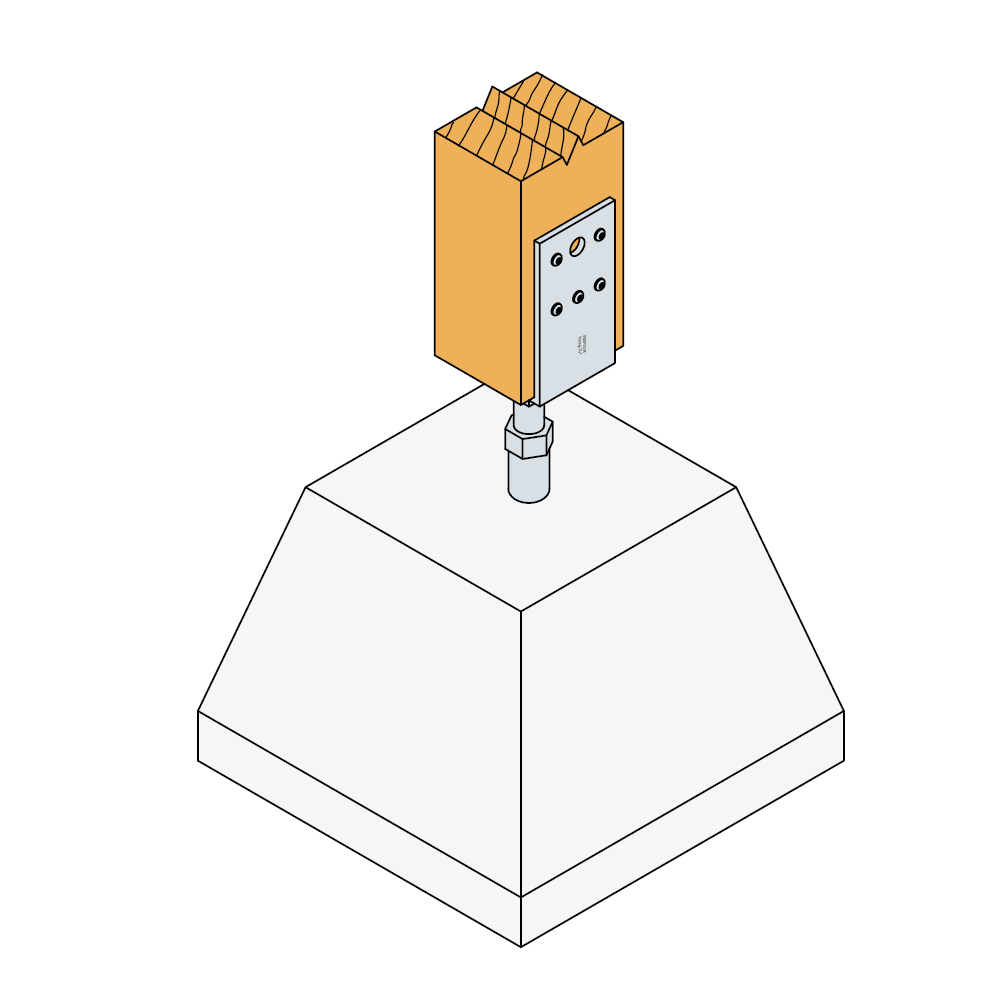

PVD inst. 1.jpg

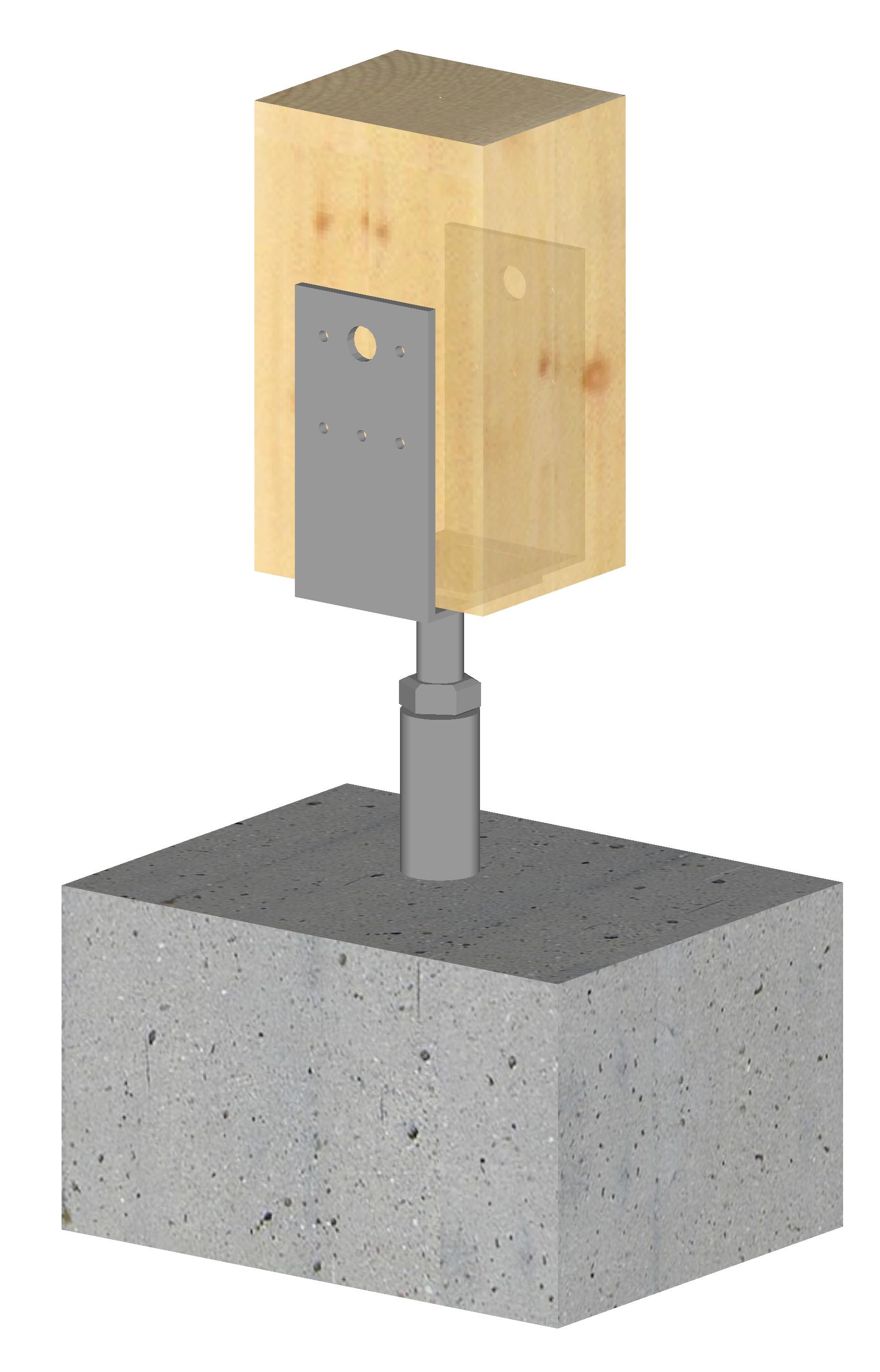

PVD inst. 2.jpg

Features

Material

Steel quality:

S 235 JR according to DIN EN 10025

Corrosion protection:

completely galvanized after processing; Zinc coating thickness about 55 microns in accordance with DIN EN 1461

Applicable materials

In Stock:
• Concrete

Component:
• Wood, wood products

Application

Application area

• Support feet PVD (VARIO) are used where the possibility of height adjustment must be given.

Installation

• The support feet are concreted.
• The connection of the props by means CNA comb nails or for construction purposes with bolts, or with dowels Ø 8 mm.
• The dowels must be at least 60mm long

Technical Data

Product Dimensions

Dimensions

Product Dimensions
Product Dimensions
ReferenceConnector Dimensions
OtherProduct Dimensions[mm]Top plate holes
Tun / DB nr.NOB nr.Qty per BoxWeight[kg]A[mm]B[mm]C[mm]D[mm]E[mm]F[mm]G[mm]t1[mm]t2[mm]Round
Ø5Ø13.5
PVD80G148011744190943102.180-120701204040249 - 3022054102

Characteristic Capacities

ReferencePost base capacity
Number of FastenersCharacteristic capacities - Timber C24[kN]
On postR₁,ₖR2,k (2)R3,k*R4,k*
QtyTypeTimber width[mm]g**[mm]g**[mm]
80120160487398487398
PVD80G10.0CNA4.0x40min (77.8 ; 49/kmod)17.6min (17.6 ; 11.6/kmod)min (15.2 ; 7.6/kmod)2.7/kmod2.1/kmod1.7/kmod6.5/kmod3.9/kmod2.8/kmod

* Dowel length ≥ 80 mm

** g is the distance from top of concrete to bottom of post

Installation

Installation

Benefits

• The PVD can be used for variable timber widths.
• A particular advantage of the height and tilt adjustable PVD column bases is that the height adjustment can be carried out subsequently, without the support rotates along.
• The max. Height adjustment is ± 25 mm from the ideal height

PVD inst. 1.jpg
PVD inst. 2.jpg

Certification

Declaration of Performance (DoP)

uk-dop-e07-0285-07.pdf
No history available

European Technical Assessment (ETA)

eta-07-0285-2021-12-09.pdf
No history available

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors

CAD and BIM Library

2D

PVD80G

3D

PVD80G

3D Simplified

PVD80G

ZIP Packages
