Column Shoes type VARIO (lbs)

The PVI column bases are height adjustable and can be set in concrete.

Technical Data Sheet

CE Marking

ETA

Hot-dip galvanised steel

Service class 3

EPD

Outdoor

Available in Connector Selector

Product Details

Images

Features

Material

Steel quality:

S 235 JR according to DIN EN 10025

Corrosion protection:

completely galvanized after processing; Zinc coating thickness about 55 microns in accordance with DIN EN 1461

Applicable materials

In Stock:
• Concrete

Component:
• Wood, wood products

Application

Application area

• embedded in concrete fixing of wooden supports for subsequent vertical orientation under medium load and for all force directions

Installation

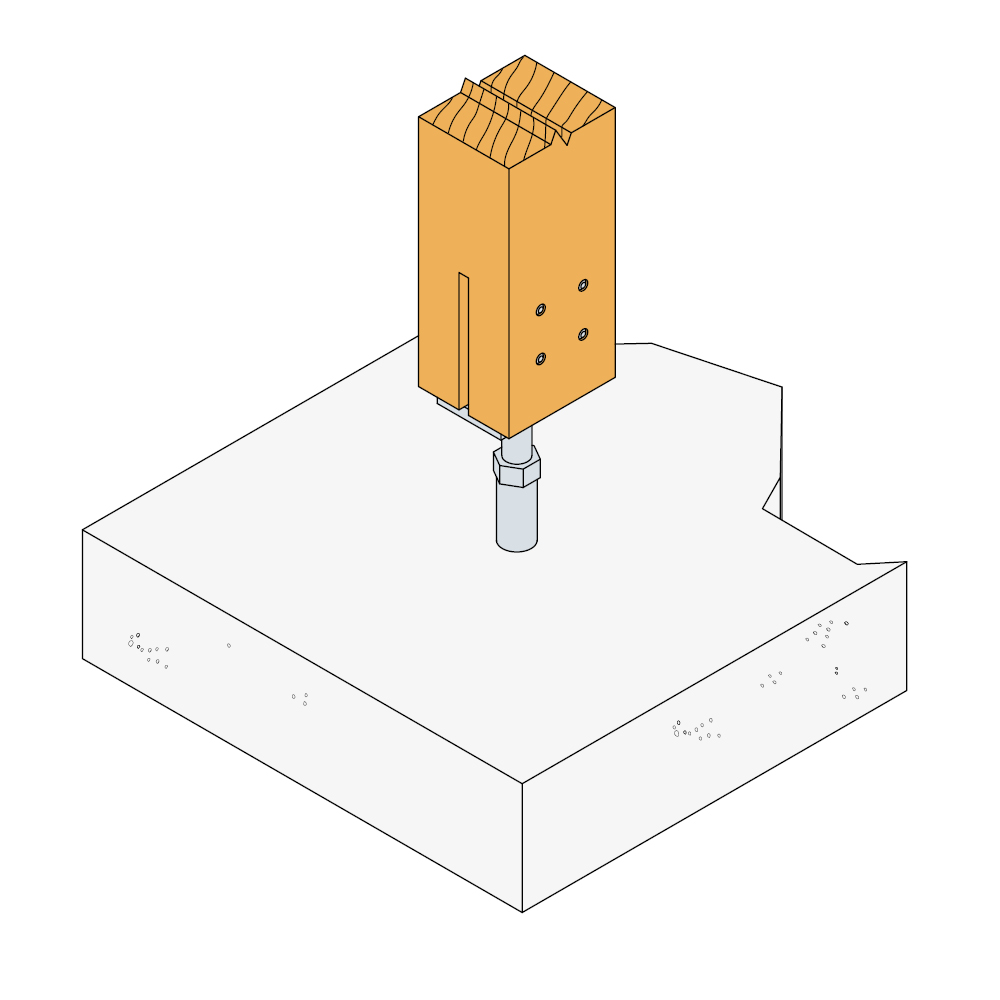

• The support feet are concreted.

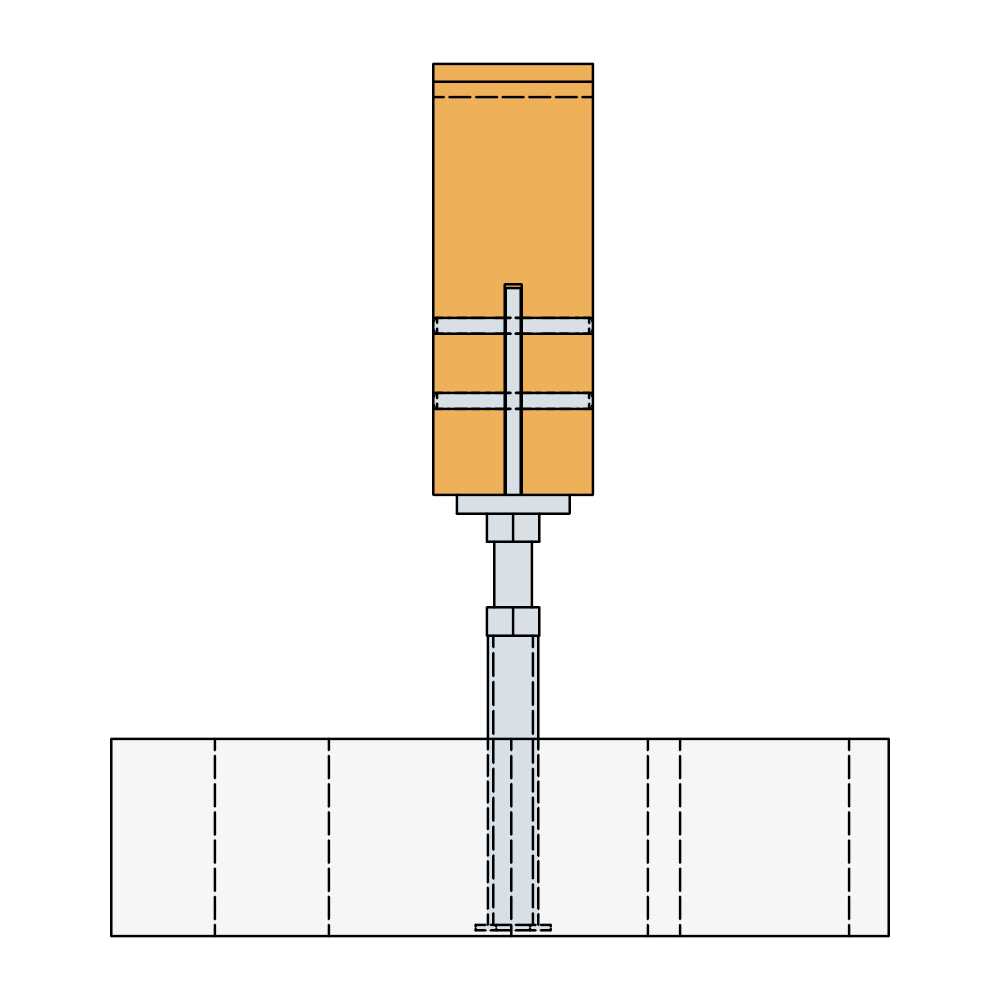

• The connection of the props by means CNA comb nails or for construction purposes with bolts, or with dowels Ø 8 mm.
• The dowels must be at least 60mm long

Technical Data

Product Dimensions

Dimensions

Reference	Connector Dimensions
	Other				Product Dimensions[mm]										Top plate holes
	Tun / DB nr.	NOB nr.	Qty per Box	Weight[kg]	A[mm]	B[mm]	C[mm]	D[mm]	E[mm]	F[mm]	G[mm]	H[mm]	t1[mm]	t2[mm]	Round
	Tun / DB nr.	NOB nr.	Qty per Box	Weight[kg]	A[mm]	B[mm]	C[mm]	D[mm]	E[mm]	F[mm]	G[mm]	H[mm]	t1[mm]	t2[mm]	Ø5
PVIG-B	2857019	21219746	10	1.3	60	90	110	40	40	222 - 274	20	70	8	4	10

Characteristic Capacities

Reference	Post base capacity
	Number of Fasteners		Characteristic Capacities[kN]
	On post		R₁,ₖ	R2,k (2)			R3,k			R4,k gmax**=32 mm			R4,k gmax**= 82 mm			R4,k gmax**= 57 mm
	Qty	Type		Dowel length[mm]			g**			Dowel length[mm]			Dowel length			Dowel length[mm]
	Qty	Type		80	120	160	32	57	82	80	120	160	80	120	160	80	120	160
PVIG-B	4.0	STD8	min (90.7 ; 49/kmod)	16	20.7	20.7	3.1/kmod	2.7/kmod	2.3/kmod	min (2.9 ; 2.5/kmod)	min (4.3 ; 4.3/kmod)	min (6.5 ; 5.4/kmod)	min (2.1 ; 1.8/kmod)	min (3.23 ; 3.23/kmod)	min (4.8 ; 4.0/kmod)	min (2.5 ; 2.2/kmod)	min (3.8 ; 3.8/kmod)	min (5.7 ; 4.7/kmod)

** g is the distance from top of concrete to bottom of post

Installation

Benefits

• The PVI column bases are height adjustable and are preferred for concealed connections, since the upright slotted sheet is built into the support-applied.
• The minimum cross-section for supporting Type PVI is 60 × 90 mm.
• The max. Height adjustment is ± 25 mm from the ideal height.
