PPS-G

Column Shoes type PB

These column bases are suitable for installation of supports / posts that are only subjected to pressure.

Technical Data Sheet
CE Marking
CE Marking
ETA
ETA
EPD
EPD
Service class 3
Service class 3
Available in Connector Selector
Available in Connector Selector

Product Details

Images

PPS80 install.jpg

Features

Material

Steel quality:

S 235 JR according to DIN EN 10025

Corrosion protection:

completely galvanized after processing; Zinc coating thickness about 55 microns in accordance with DIN EN 1461

Benefits

• The PPB support feet are height-adjustable and can be loaded vertically.
• You will be connected with anchor bolts on a concrete foundation.

Application

Applicatons

In Stock:
• Concrete

Component:
• Wood, wood products

Scope

• The column bases PPB / PPS suitable for installation of supports / posts that are only subjected to pressure.

Technical Data

Product Dimensions

Dimensions

Product Dimensions
Product Dimensions
ReferenceConnector Dimensions
OtherProduct Dimensions[mm]Top plate holes
Tun / DB nr.NOB nr.Qty per boxWeight[kg]A[mm]B[mm]F[mm]G[mm]t[mm]Round
Bolts[mm]
PPS80G510469122062822101.280803502084

Capacities

ReferencePost base capacity
Product capacities - Timber to Concrete
Number of FastenersCharacteristic capacities - Timber C24[kN]
On postR₁,ₖ
QtyTypeconcrete
C16/20C20/25
PPS80G4Ø840.0/kmod49.5/kmod

The embending length shall be min. 200 mm, the distance between surface of concrete and lower side of the post shall be max. 100 mm.

Installation

Installation

Fasteners

• The PPB column base is similar to the concrete using anchors fixed, the PPS column base is concreted directly.
• The max. Distance from the molded base plate is 100mm, also applies to the PPS base support a in concrete of 200mm.
• The threaded rod is inserted through a hole (AE18 / Æ22mm) in the support.
• A constructive position securing is done by means of screws or nails.

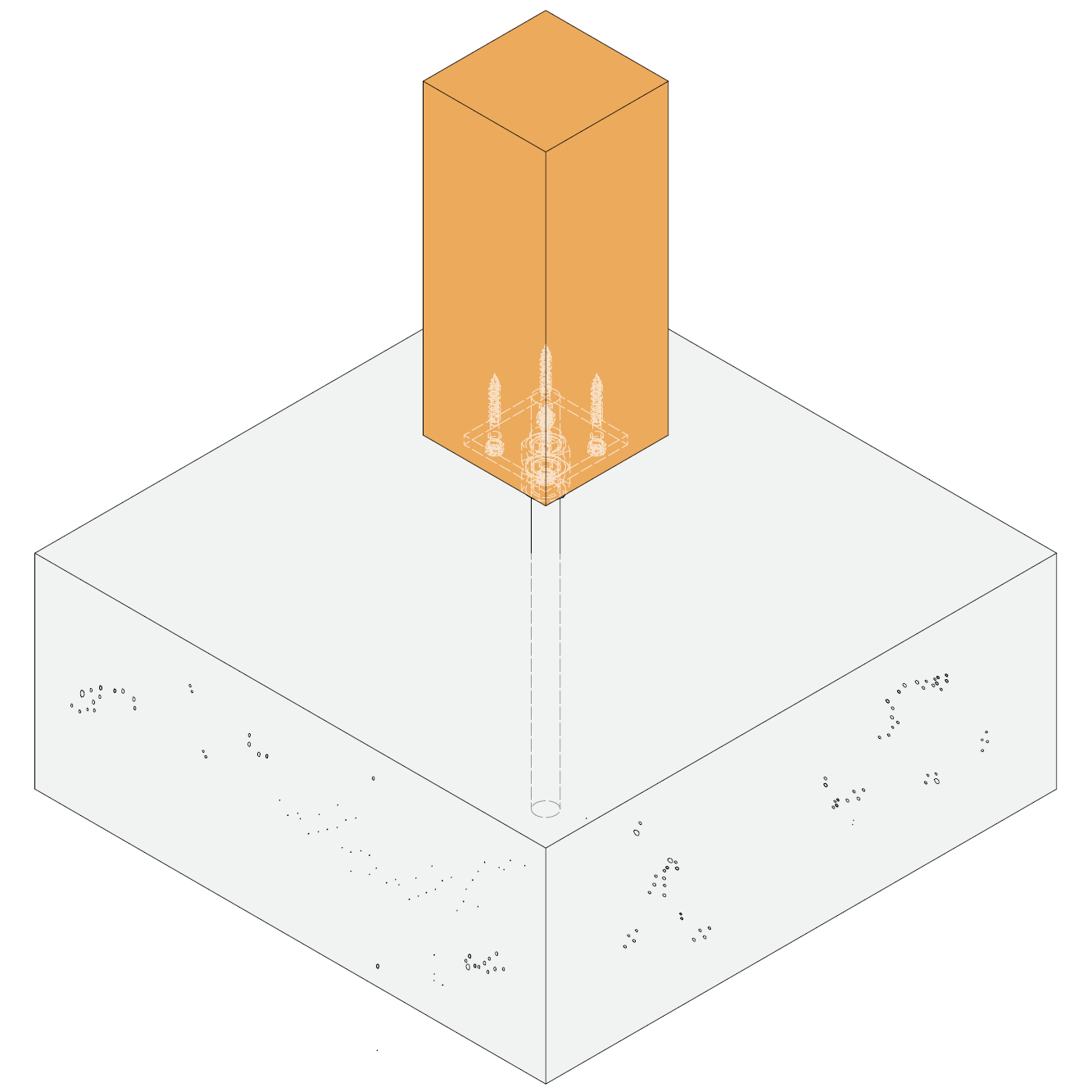

PPS80 install.jpg

Certification

Declaration of Performance (DoP)

uk-dop-e07-0285-07.pdf
No history available

European Technical Assessment (ETA)

eta-07-0285-2021-12-09.pdf
No history available

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors
