PL-G

Column shoe Type L

The PL column shoes are used directly in the concrete and can absorb compressive, tensile and horizontal forces.

Technical Data Sheet
CE Marking
CE Marking
ETA
ETA
Service class 3
Service class 3
Hot-dip galvanised steel
Hot-dip galvanised steel
Outdoor
Outdoor
EPD
EPD
Available in Connector Selector
Available in Connector Selector

Product Details

Images

PL installer v2.jpg
PL installer.jpg

Features

Material

Steel quality:

S 235 JR according to DIN EN 10025

Corrosion protection:

completely galvanized after processing; Zinc coating thickness about 55 microns in accordance with DIN EN 1461



Benefits

• The column bases are hot dip galvanized and are suitable for mounting of wooden pillars and posts in foundations.
• Because of the long rods, they can, for example, are used in a structure with a layer of gravel and paving.

Application

Applicatons

In Stock:
• Concrete

component:
• Wood, wood products

Scope

• PL column shoes can (NKL 3) be used outdoors and take their compressive, tensile and horizontal forces.

Technical Data

Product Dimensions

Dimensions

Product Dimensions
ReferenceConnector Dimensions
OtherProduct Dimensions[mm]Top plate holes
Tun / DB nr.NOB nr.Weight[kg]A[mm]B[mm]C[mm]D[mm]E[mm]F[mm]G[mm]t[mm]Round
Ø5[mm]Ø13.5
PL100/70G-B285684721219639210070126707050038584
PL120/90G1837276212196542.3120901267070500385124
PL140/90G1837251212196622.4140901267070500385124

Characteristic Capacities

ReferencePost base capacity
Number of FastenersCharacteristic Capacities[kN]
On postR₁,ₖR2,kR3,kR4,k
QtyType
PL100/70G-B8.0CNA4.0x4057.1/kmodMin (18.4 ; 11.7/kmod)2.8/kmod3.5/kmod
PL120/90G12.0CNA4.0x4057.1/kmodMin (19.0 ; 11.4/kmod)2.8/kmod3.5/kmod
PL140/90G12.0CNA4.0x4057.1/kmod9.2/kmod2.8/kmod3.5/kmod

Combined load:

\sum\frac{F_{i,d}} {R_{i,d}}\le1

Installation

Installation

Fasteners

• The connection to the timber is carried out with CNA4,0x40 comb nails or constructively with bolts.
• The distance of the plate to the concrete is max. Amount to 250 mm.

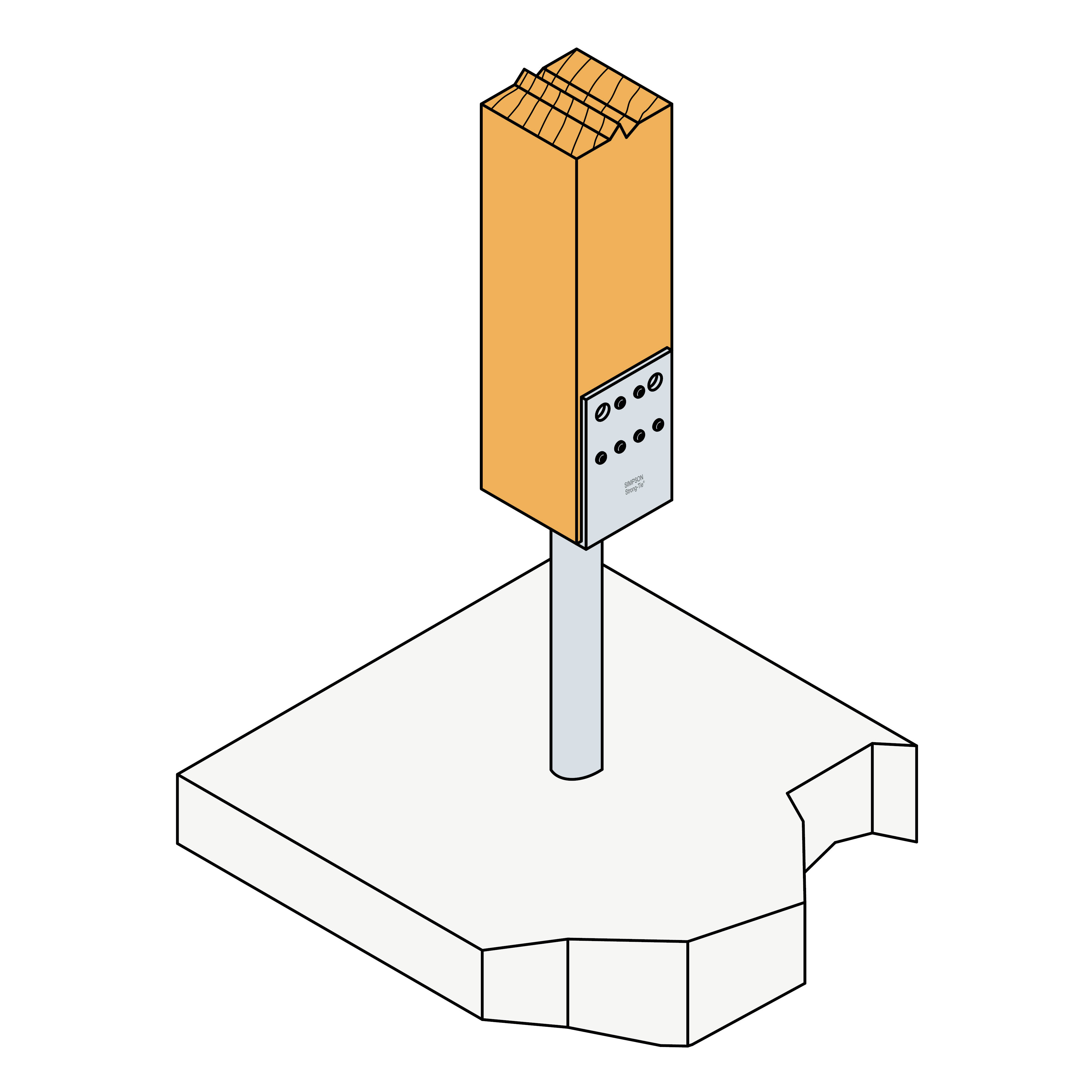

PL installer v2.jpg
PL installer.jpg
