CMS

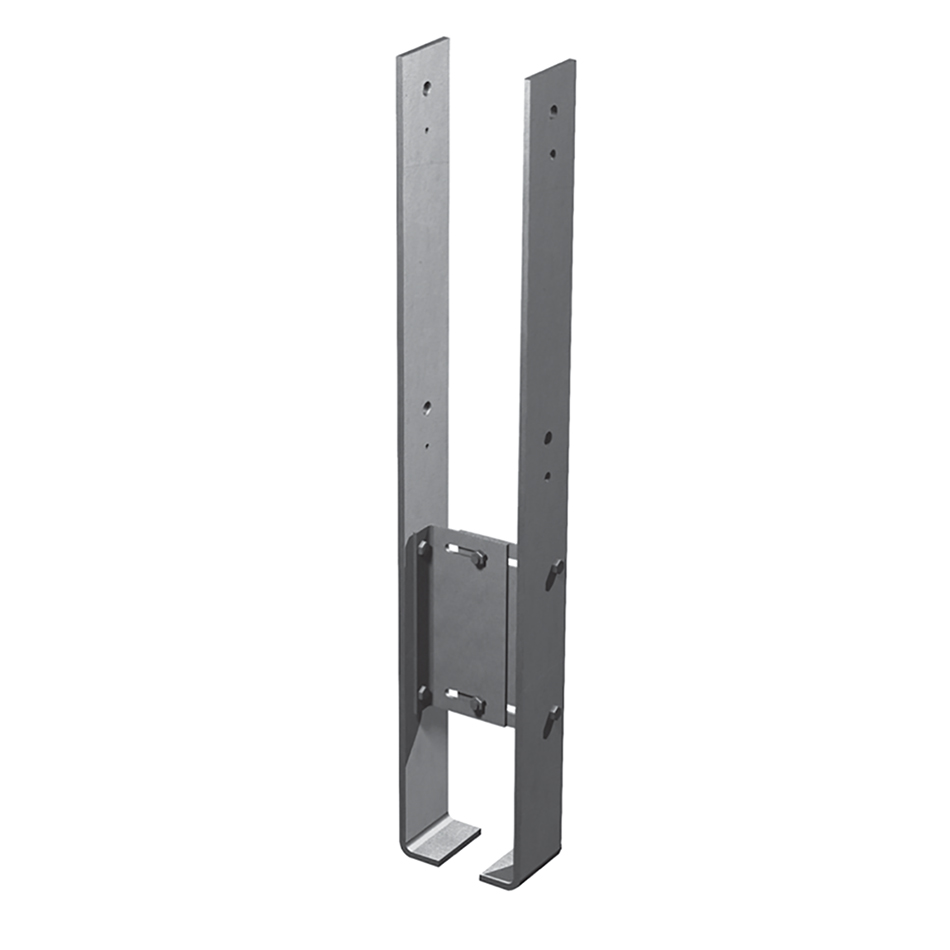

CMS column shoe
column shoe CMS consists of two outer steel parts, can be used from 80 to 140 mm can be adapted to the width of the corresponding column. They are suitable for outdoor use.
CE Marking
ETA
Outdoor
Hot-dip galvanised steel
EPD
Service class 3
Technical Data
Product Dimensions
Dimensions
| Reference | Connector Dimensions | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Post[mm] | Product Dimensions[mm] | Holes Flange C | Other | |||||||||
| Width | A[mm] | B[mm] | C[mm] | D[mm] | E[mm] | F[mm] | t[mm] | Round | Weight[kg] | |||
| Min | Max | Ø6.5 | Ø17 | |||||||||
| CMS | 80 | 140 | 80-140 | 80 | 470 | 150 | 200 | 40 | 8 | 4 | 4 | 9.6 |
Capacities
Dimensions

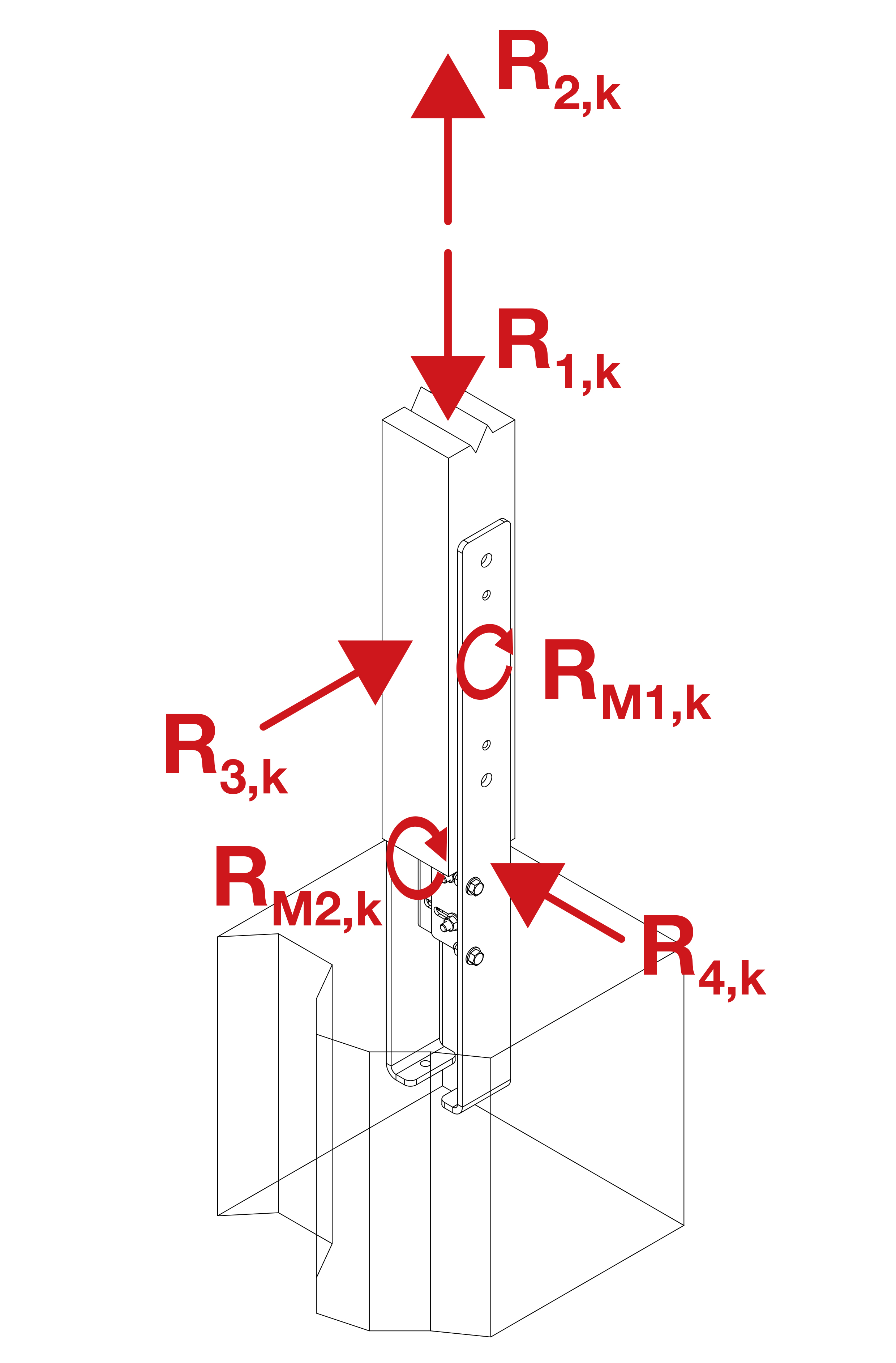

| Reference | Post base capacity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Product capacities - Timber to Concrete | ||||||||||
| Number of Fasteners | Characteristic capacities - Timber C24[kN] | |||||||||
| On post | R3,k (2)[kN] | R4,k (2)[kN] | R1,k = R2,k[kN] | RM1,k[kNm] | RM2,k[kNm] | |||||
| Qty | Type | Width of the post[mm] | Width of the post[mm] | Width of the post[mm] | Width of the post[mm] | Width of the post[mm] | ||||
| ≥ 80 mm | ≥ 80 mm | ≥ 80 mm | ≥ 80 mm | 80 | 100 | 120 | 140 | |||
| CMS | 2 | M16* | min(74; 15/kmod) | min(21.1; 19.8/kmod) | 96.9 | min(11.6; 7.1/kmod) | 3.9 | 4.8 | 5.8 | 6.8 |
* with Buldog type C2; Ø62
Combined load:
