Connectors

Nailplates and Shear Connectors

C1 - C5

Bulldog®-sided C1-C3-C5

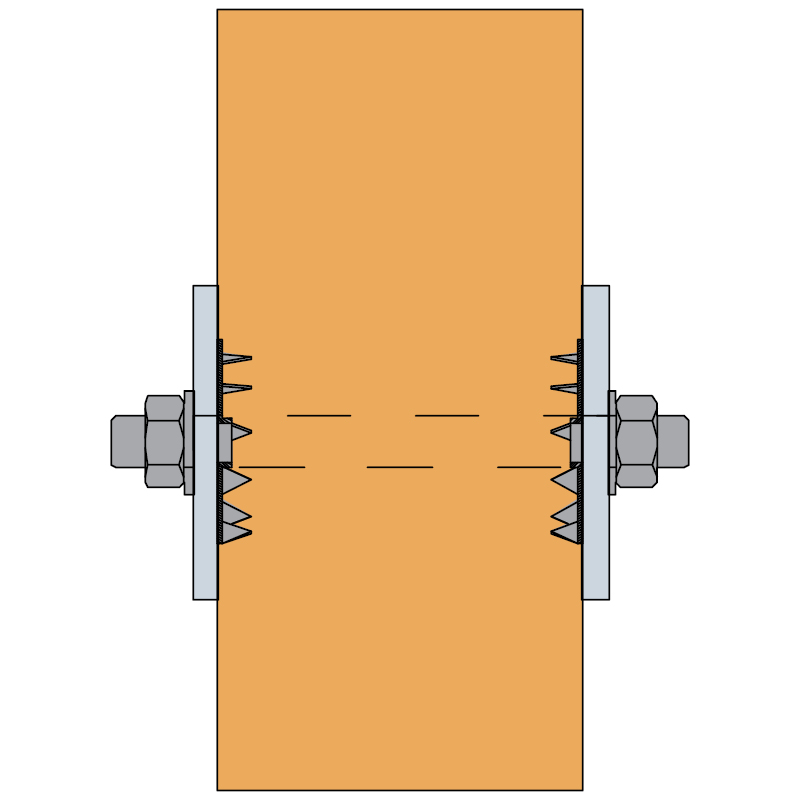

Anchor blade, which is used to join two pieces of timber with pin.

Technical Data Sheet

CE Marking

EPD

Outdoor

Service class 3

Galvanised steel

Product Details

Images

Features

Material

• DC01 (DX51D)

Benefits

• When connected using pins and dowels do not come into contact two bonded materials.

Application

Applicatons

wood

Scope

• Wood / Wood

Technical Data

Dimensions - Round double sided C1

Dimensions

Reference	Connector dimensions[mm]
	Other				Product Dimensions[mm]
	Type	Tun / DB nr.	NOB nr.	Qty per Box	t[mm]	Diameter		Height
						External	Center hole	Teeth	Total
						dc[mm]	d₁[mm]	h₁[mm]	hc[mm]
C1-50-B	C1	5804553	43910606	200.0	1	50	17	6	13
C1-62-B	C1	5804554	43910614	100.0	1.2	62	21	7.4	16
C1-75-B	C1	5804555	NOB179	100.0	1.3	75	26	9.1	19.5
C1-50G-B	C1	8271405	24793937	200.0	1	50	17	6	13
C1-62G-B	C1	8271413	24793952	100.0	1.2	62	21	7.4	16
C1-75G-B	C1	8271421	24793960	100.0	1.3	75	26	9.1	19.5
C1-95G-B	C1	8271439	24793978	40.0	1.4	95	33	11.3	24
C1-117G-B	C1	8977548	24793994	25.0	1.5	117	48	14.3	30

Dimensions - Oval double sided C3

Dimensions

Reference	Connector dimensions[mm]
	Other				Product Dimensions[mm]
	Type	Tun / DB nr.	NOB nr.	Qty per Box	t[mm]	a1[mm]	a2[mm]	Diameter		Height
								Center hole	Side holes	Teeth	Total
								d₁[mm]	d2[mm]	h₁[mm]	hc[mm]
C3-73/130G-B	C3	8977571	24794018	50.0	1.5	73	130	26	16	13.3	28

Dimensions - Square double sided C5

Dimensions

Reference	Connector dimensions[mm]
	Other				Product Dimensions[mm]
	Type	Tun / DB nr.	NOB nr.	Qty per Box	t[mm]	Diameter		Height
						External	Center hole	Teeth	Total
						dc[mm]	d₁[mm]	h₁[mm]	hc[mm]
C5-100G-B	C5	8977555	24793986	50.0	1.4	100	40	7.3	16
C5-130G-B	C5	8977563	24794000	25.0	1.5	130	52	9.3	20

Minimum distances and characteristic values

Reference	Connector dimensions[mm]	Shear connectors capacity
	Other	Chosen timber thickness[mm]		Characteristic shear resistance (bolt resistance not included)[kN]	Minimum distances[mm]
	Type	t₁[mm]	t₂[mm]	Rv.ₖ[kN]	Spacing perpendicular to grain	from loaded end	from unloaded end	from loaded edge	from unloaded edge	Spacing parallel to grain
	Type	t₁[mm]	t₂[mm]	Rv.ₖ[kN]	a₂[mm]	a₃.ₜ[mm]	a₃.c α=₉₀°[mm]	a₄.ₜ α=₉₀°[mm]	a₄.c[mm]	a₁ α=₀°[mm]
C1-50-B	C1	18	30	6.3	60	75	75	40	30	75
C1-62-B	C1	23	37	8.7	75	93	93	50	38	93
C1-75-B	C1	28	46	11.6	90	113	113	60	45	113
C1-50G-B	C1	18	30	6.3	60	75	75	40	30	75
C1-62G-B	C1	23	37	8.7	75	93	93	50	38	93
C1-75G-B	C1	28	46	11.6	90	113	113	60	45	113
C1-95G-B	C1	34	57	16.6	114	143	143	76	57	143
C1-117G-B	C1	43	72	22.7	141	176	176	94	71	176
C3-73/130G-B	C3	40	67	17.1	117	146	146	78	59	146
C5-100G-B	C5	22	37	18	120	150	150	80	60	150
C5-130G-B	C5	28	47	26.6	156	195	195	104	78	195

The given characteristic shear resistance per connector R_v.k is calculated according to the minimum distances given in this table and for timber grade C24. This capacity can be increased with a higher timber grade (see k₃ factor according to EN1995). This capacity can also be decreased with lower a_3.t (see k₂factor according to EN1995). For lower t₁ or t₂, please refer to EN1995. The characteristic bolt shear resistance is not included and should be added.

Certification

Declaration of Performance (DoP)

uk-dop-h10-0007-04.pdf

Show history

2018-07-16

uk-dop-h10-0007-issue-3.pdf

2015-08-05

uk-dop-h10-0007.pdf

2013-03-01

36b688721277b8a2cb6a94358a84dedb6edc5365.pdf

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors
