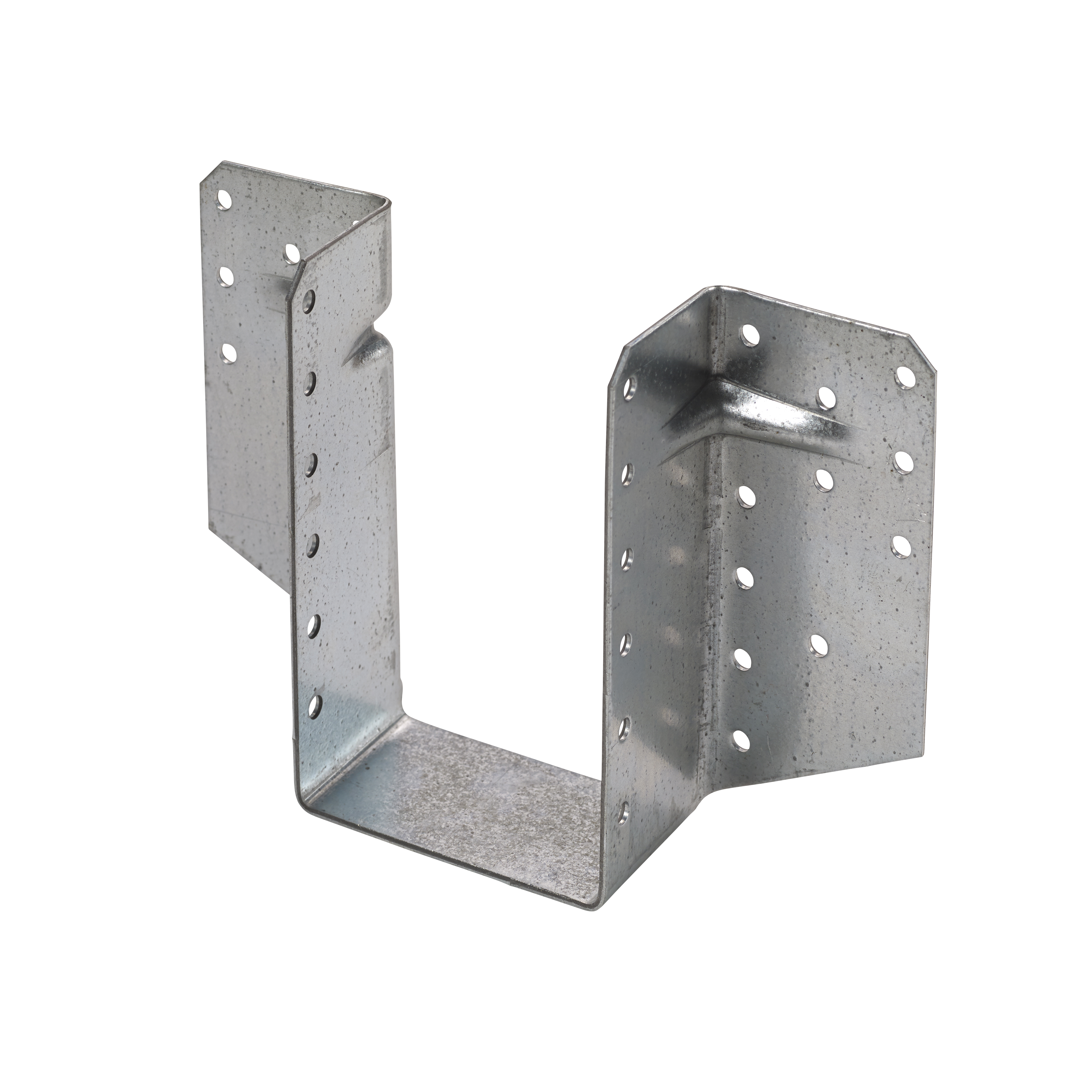

BSS joist hanger

Shoe with ribs, absorbs a higher lateral loads.

Technical Data Sheet

CE Marking

ETA

external fender

EPD

Service class 2

Electrogalvanized steel Z275

Product Details

Images

Features

Material

Steel quality:

S 250 GD + Z 275 according to DIN EN 10346

Corrosion protection:

275 g / m galvanized on both sides 20mm

Benefits

• Special Dimensions (W × H + 2) are possible only in the basic form.
• Boots are specially adapted for storing slanting roofs

Application

Applicatons

Wood, wood products

Scope

• For connecting secondary beams of wood or wood materials into the main carrier / supports of wood / wood composite.

Technical Data

Product Dimensions

Dimensions

Reference	Connector Dimensions
	Other			Joist Size[mm]				Product Dimensions[mm]						Header holes		Joist holes
	Tun / DB nr.	NOB nr.	Weight[kg]	Height		Width		A[mm]	B[mm]	C[mm]	D[mm]	F[mm]	t[mm]	Round		Round
	Tun / DB nr.	NOB nr.	Weight[kg]	Min[mm]	Max.[mm]	Min[mm]	Max.[mm]	A[mm]	B[mm]	C[mm]	D[mm]	F[mm]	t[mm]	Ø5[mm]	Ø13[mm]	Ø5[mm]	Ø13[mm]
BSS60/90	-	-	0.3	100	135	58	60	60	90	48	58	50	2	16	-	8	-
BSS80/110	-	-	0.37	120	165	78	80	80	110	48	58	50	2	20	-	10	-
BSS80/130	-	-	0.44	140	195	78	80	80	130	48	58	50	2	22	-	12	-
BSS80/150	-	-	0.52	160	225	78	80	80	150	48	58	50	2	26	-	14	-
BSS100/130	-	-	0.45	140	195	98	100	100	130	48	58	50	2	22	-	12	-
BSS100/150	-	-	0.5	160	225	98	100	100	150	48	58	50	2	26	-	14	-
BSS100/170	-	-	0.59	180	255	98	100	100	170	48	58	50	2	28	-	16	-
BSS100/190	-	-	0.65	200	285	98	100	100	190	48	58	50	2	32	-	18	-
BSS120/170	-	-	0.59	180	255	118	120	120	170	48	58	50	2	28	-	16	-
BSS120/190	-	-	0.64	200	285	118	120	120	190	48	58	50	2	32	-	18	-
BSS120/210	-	-	0.71	220	315	118	120	120	210	48	58	50	2	34	-	20	-
BSS120/230	-	-	0.78	240	345	118	120	120	230	48	58	50	2	38	-	22	-
BSS140/150	-	-	0.59	160	225	138	140	140	150	48	58	50	2	26	-	14	-

Wood/wood fastening- Characteristic values in kn

Reference	Hanger capacity
	Characteristic capacities - Timber to timber - Full nailing
	Number of Fasteners		Product characteristic capacities - Timber C24[kN]
	Header	Joist	R₁.ₖ				R₂.ₖ				R₃.ₖ
	Qty	Qty	CNA4,0x35	CNA4,0x40	CNA4,0x50	CNA4,0x60	CNA4,0x35	CNA4,0x40	CNA4,0x50	CNA4,0x60	CNA4,0x35	CNA4,0x40	CNA4,0x50	CNA4,0x60
BSS60/90	16.0	8	6.8	8.2	0	0	6.5	7.8	0	0	4	4.8	0	0
BSS80/110	20.0	10	10.8	12.9	16.9	20.7	10.5	12.6	16.6	20.2	5.3	6.2	8.1	9.5
BSS80/130	22.0	12	14.3	17.1	22.2	26.8	12.3	14.7	19.3	23.5	6.1	7.2	9.3	10.8
BSS80/150	26.0	14	18.2	21.7	28.1	33.8	17.7	21.1	27.5	33	6.9	8.1	10.3	11.9
BSS100/130	22.0	12	13.9	16.6	21.6	26.1	12.3	14.7	19.3	23.5	6.5	7.7	10	11.9
BSS100/150	26.0	14	18.2	21.7	28.1	33.8	17.7	21.1	27.5	33	7.4	8.7	11.2	13.2
BSS100/170	28.0	16	22.2	26.3	34	40.4	19.9	23.7	30.8	36.9	8.2	9.6	12.4	14.5
BSS100/190	32.0	18	26.6	31.5	40.6	47.2	26.4	31.2	40	42.5	8.9	10.5	13.4	15.5
BSS120/170	28.0	16	22.2	26.3	34	40.4	19.9	23.7	30.8	36.9	8.6	10.2	13.1	15.6
BSS120/190	32.0	18	26.6	31.5	40.6	47.2	26.4	31.2	40	42.5	9.4	11.1	14.3	16.9
BSS120/210	34.0	20	31	36.4	46.7	51.9	29.6	35	44.4	47.2	10.2	12	15.4	18
BSS120/230	38.0	22	39.8	43.9	53.3	56.6	36.1	40.3	48.8	51.9	10.9	12.8	16.4	19
BSS140/150	26.0	14	18.2	21.7	28.1	33.8	17.7	21.1	27.5	33	7.9	9.4	12.3	14.8

Combined load:

$\left(\frac{F_{1/2,d}} {R_{1/2,d}}\right)^2+\left(\frac{F_{3,d}} {R_{3,d}}\right)^2\le1$
