BSD

BSD joist hanger

These ceiling drapes are used to connect a secondary beam to the main support or support.

Technical Data Sheet

CE Marking

ETA

Service class 2

Electrogalvanized steel 20 µm

EPD

Available in Connector Selector

Product Details

Images

Features

Material

Steel quality:

S 250 GD + Z 275 according to DIN EN 10346

Corrosion protection:

275 g / m galvanized on both sides 20mm

Benefits

• The BSD-beam shoe (s outer legs) are entitled to biaxial loading.
• Connection to concrete, steel and masonry are allowed
• addition of standard dimensions is possible to produce different formats

Application

Applicable materials

Wood, wood products, concrete

Application area

• For connecting secondary beams of wood or wood materials into main load-bearing / mainstays of wood / composite wood or concrete / steel.
• position / number and diameter of the holes for the screws can be selected.
Specification width, may be freely from 50 to 250 mm.

Discontinued Products

Variant Status Details

There are variants of this product family which have been discontinued and are out of production.

phased out (has Variants which were phased out)

Technical Data

Dimensions

Product Dimensions

References	Joist Size [mm]				Product Dimensions [mm]						Header holes	Joist holes	Box Quantity	Weight [kg]
	Width		Height		A	B	C	D	F	t	Ø5 [mm]	Ø5 [mm]
	Min	Max.	Min	Max.	A	B	C	D	F	t	Ø5 [mm]	Ø5 [mm]
BSD A/100	34	250	110	150	A	100	50	30	52	2	16	8	-	-
BSD A/120	34	250	130	180	A	120	50	30	52	2	20	10	-	-
BSD A/140	34	250	150	210	A	140	50	30	52	2	24	12	-	-
BSD A/160	34	250	170	240	A	160	50	30	52	2	28	14	-	-
BSD A/180	34	250	190	270	A	180	50	30	52	2	32	16	-	-
BSD A/200	34	250	210	300	A	200	50	30	52	2	36	18	-	-
BSD A/220	34	250	230	330	A	220	50	30	52	2	40	20	-	-
BSD A/240	34	250	250	360	A	240	50	30	52	2	44	22	-	-
BSD A/260	34	250	270	390	A	260	50	30	52	2	48	24	-	-
BSD A/280	34	250	290	420	A	280	50	30	52	2	52	26	-	-
BSD A/300	34	250	310	450	A	300	50	30	52	2	56	28	-	-
BSD A/320	34	250	330	480	A	320	50	30	52	2	60	30	-	-
BSD120/240	-	-	-	-	120	240	50	30	52	2	44	22	20	0.77
BSD160/200	-	-	-	-	160	200	50	30	52	2	32	16	20	0.72
BSD160/240	-	-	-	-	160	240	50	30	52	2	44	22	10	0.81
BSD200/200	-	-	-	-	200	200	50	30	52	2	32	16	20	0.77
BSD special 100/80	-	-	-	-	100	80	50	30	52	2	12	6	-	-
BSD special 120/100	-	-	-	-	120	100	50	30	52	2	16	8	-	-
BSD special 120/130	-	-	-	-	120	130	50	30	52	2	20	10	-	-
BSD special 140/120	-	-	-	-	140	120	50	30	52	2	20	10	-	-
BSD100/240	-	-	-	-	-	-	-	-	-	-	-	-	20	0.74
BSD120/300	-	-	-	-	-	-	-	-	-	-	-	-	20	0.83
BSD120/320	-	-	-	-	-	-	-	-	-	-	-	-	20	0.88
BSD140/200	-	-	-	-	-	-	-	-	-	-	-	-	25	0.6
BSD140/220	-	-	-	-	-	-	-	-	-	-	-	-	20	0.74
BSD140/240	-	-	-	-	-	-	-	-	-	-	-	-	20	0.83
BSD140/260	-	-	-	-	-	-	-	-	-	-	-	-	25	0.75
BSD140/300	-	-	-	-	-	-	-	-	-	-	-	-	20	0.85
BSD140/320	-	-	-	-	-	-	-	-	-	-	-	-	20	0.9
BSD160/160	-	-	-	-	-	-	-	-	-	-	-	-	25	0.61
BSD160/260	-	-	-	-	-	-	-	-	-	-	-	-	25	0.76
BSD160/280	-	-	-	-	-	-	-	-	-	-	-	-	10	0.92
BSD160/300	-	-	-	-	-	-	-	-	-	-	-	-	10	0.97
BSD160/320	-	-	-	-	-	-	-	-	-	-	-	-	10	1
BSD180/180	-	-	-	-	-	-	-	-	-	-	-	-	20	0.69
BSD180/220	-	-	-	-	-	-	-	-	-	-	-	-	20	0.79
BSD180/280	-	-	-	-	-	-	-	-	-	-	-	-	10	0.95
BSD180/320	-	-	-	-	-	-	-	-	-	-	-	-	20	0.93
BSD200/240	-	-	-	-	-	-	-	-	-	-	-	-	20	0.87
BSD200/280	-	-	-	-	-	-	-	-	-	-	-	-	20	0.85

Dimensions on stock
	A [mm]
B [mm]	80	100	120	140	160	180	200
100	x
120		x
140
160					x
180			x			x
200				x	x		x
220						x
240		x	x	x	x		x
260				x	x
280					x	x	x
300			x	x	x
320			x	x	x	x

The dimensions, which are not on stock, are available in a short time.

Also types with bolt holes are available in a short time.

Product Capacities

References	Number of Fasteners		Product characteristic capacities - Timber C24 [kN]
	Header	Joist	R_1.k				R_2.k
	Qty	Qty	CNA4,0x35	CNA4,0x40	CNA4,0x50	CNA4,0x60	CNA4,0x35	CNA4,0x40	CNA4,0x50	CNA4,0x60
BSD A/100	16	8	8.2	9.9	13	15.9	8.5	10.3	13.4	16.4
BSD A/120	20	10	11.9	14.2	18.5	22.5	12.2	14.6	19.1	23.2
BSD A/140	24	12	16	19.1	24.8	29.9	16.4	19.6	25.5	28.3
BSD A/160	28	14	20.6	24.5	31.8	37.8	21.1	25.1	31.1	33
BSD A/180	32	16	25.7	30.4	39.3	42.5	26.2	29.3	35.5	37.8
BSD A/200	36	18	31.1	36.6	44.4	47.2	29.9	32.9	40	42.5
BSD A/220	40	20	36.5	40.3	48.8	51.9	33.2	36.6	44.4	47.2
BSD A/240	44	22	39.8	43.9	53.3	56.6	36.5	40.3	48.8	51.9
BSD A/260	48	24	43.2	47.6	57.7	61.4	39.8	43.9	53.3	56.6
BSD A/280	52	26	46.5	51.2	62.2	66.1	43.2	47.6	57.7	61.4
BSD A/300	56	28	49.8	54.9	66.6	70.8	46.5	51.2	62.2	66.1
BSD A/320	60	30	53.1	58.6	71	75.5	49.8	54.9	66.6	70.8
BSD120/240	44	22	39.8	43.9	53.3	56.6	36.5	40.3	48.8	51.9
BSD160/200	32	16	31.1	36.6	44.4	47.2	29.9	32.9	40	42.5
BSD160/240	44	22	39.8	43.9	53.3	56.6	36.5	40.3	48.8	51.9
BSD200/200	32	16	31.1	36.6	44.4	47.2	29.9	32.9	40	42.5
BSD special 100/80	12	6	-	-	-	-	-	-	-	-
BSD special 120/100	16	8	8.2	9.9	13	15.9	8.5	10.3	13.4	16.4
BSD special 120/130	20	10	11.9	14.2	18.5	22.5	12.2	14.6	19.1	23.2
BSD special 140/120	20	10	11.9	14.2	18.5	22.5	12.2	14.6	19.1	23.2
BSD100/240	-	-	-	-	-	-	-	-	-	-
BSD120/300	-	-	-	-	-	-	-	-	-	-
BSD120/320	-	-	-	-	-	-	-	-	-	-
BSD140/200	-	-	-	-	-	-	-	-	-	-
BSD140/220	-	-	-	-	-	-	-	-	-	-
BSD140/240	-	-	-	-	-	-	-	-	-	-
BSD140/260	-	-	-	-	-	-	-	-	-	-
BSD140/300	-	-	-	-	-	-	-	-	-	-
BSD140/320	-	-	-	-	-	-	-	-	-	-
BSD160/160	-	-	-	-	-	-	-	-	-	-
BSD160/260	-	-	-	-	-	-	-	-	-	-
BSD160/280	-	-	-	-	-	-	-	-	-	-
BSD160/300	-	-	-	-	-	-	-	-	-	-
BSD160/320	-	-	-	-	-	-	-	-	-	-
BSD180/180	-	-	-	-	-	-	-	-	-	-
BSD180/220	-	-	-	-	-	-	-	-	-	-
BSD180/280	-	-	-	-	-	-	-	-	-	-
BSD180/320	-	-	-	-	-	-	-	-	-	-
BSD200/240	-	-	-	-	-	-	-	-	-	-
BSD200/280	-	-	-	-	-	-	-	-	-	-

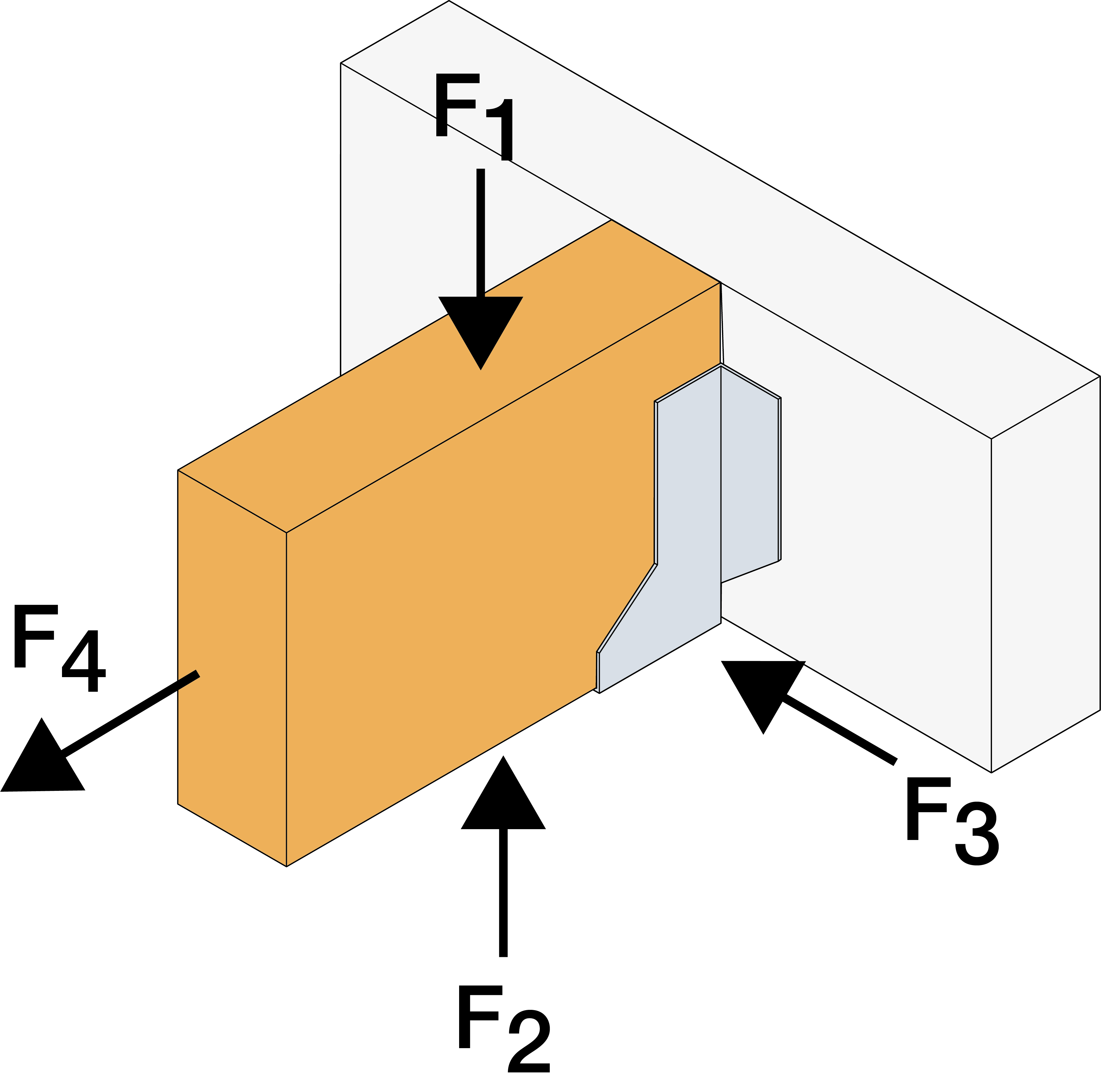

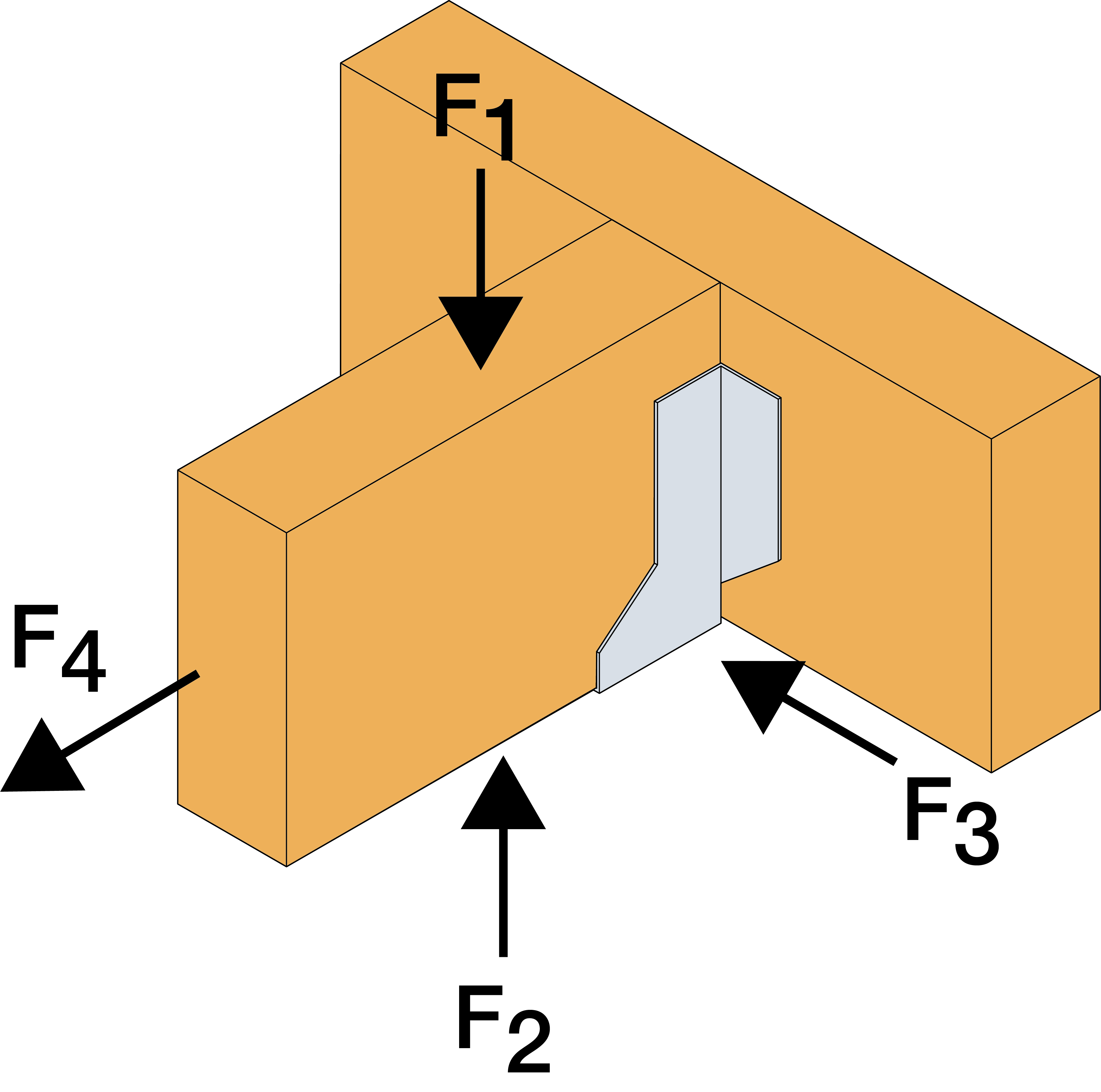

Product capacities – Timber to timber – Full nailing - F3 (lateral)

References	Number of Fasteners		Product characteristic capacities - Timber C24 [kN]
	Header	Joist	R_3.k
	Qty	Qty	CNA4,0x35				CNA4,0x40				CNA4,0x50				CNA4,0x60
	Qty	Qty	A=60mm	A=80mm	A=120mm	A=160mm	A=60mm	A=80mm	A=120mm	A=160mm	A=80mm	A=120mm	A=160mm	A=200mm	A=80mm	A=100mm	A=120mm	A=140mm	A=160mm	A=180mm	A=200mm
BSD A/100	16	8	4	4.3	4.6	4.7	4.7	5.1	5.5	5.7	6.6	7.2	7.5	7.6	7.9	8.4	8.8	9	9.2	9.3	9.4
BSD A/120	20	10	4.8	5.2	5.7	5.8	5.6	6.2	6.8	7	8	8.8	9.2	9.4	9.4	10.2	10.7	11.1	11.3	11.5	11.6
BSD A/140	24	12	5.4	6.1	6.7	6.9	6.3	7.1	8	8.3	9.1	10.4	10.9	11.2	10.7	11.7	12.5	13	13.3	13.6	13.8
BSD A/160	28	14	6	6.8	7.6	8	7	8	9.1	9.6	10.2	11.8	12.5	12.9	11.8	13.1	14	14.7	15.2	15.6	15.8
BSD A/180	32	16	6.5	7.5	8.5	9	7.5	8.7	10.1	10.8	11.1	13.1	14	14.6	12.7	14.3	15.5	16.3	17	17.4	17.8
BSD A/200	36	18	7	8.1	9.4	10	8	9.4	11.1	11.9	11.9	14.2	15.5	16.2	13.5	15.4	16.8	17.8	18.6	19.2	19.7
BSD A/220	40	20	7.3	8.6	10.2	10.9	8.4	10	11.9	13	12.6	15.3	16.8	17.7	14.2	16.3	17.9	19.1	20.1	20.8	21.4
BSD A/240	44	22	7.6	9.1	10.9	11.8	8.7	10.5	12.8	14	13.1	16.3	18.1	19.1	14.8	17.1	18.9	20.3	21.5	22.4	23.1
BSD A/260	48	24	7.9	9.5	11.6	12.6	9	10.9	13.5	14.9	13.7	17.2	19.3	20.5	15.3	17.8	19.8	21.4	22.7	23.8	24.6
BSD A/280	52	26	8.1	9.9	12.2	13.4	9.2	11.3	14.2	15.8	14.1	18	20.3	21.8	15.7	18.4	20.6	22.4	23.9	25.1	26.1
BSD A/300	56	28	8.3	10.2	12.7	14.2	9.4	11.6	14.8	16.7	14.5	18.7	21.4	23.1	16	18.9	21.3	23.3	24.9	26.3	27.4
BSD A/320	60	30	8.5	10.5	13.2	14.9	9.5	11.9	15.3	17.4	14.8	19.3	22.3	24.2	16.3	19.4	21.9	24.1	25.9	27.4	28.6
BSD120/240	44	22	7.6	9.1	10.9	11.8	8.7	10.5	12.8	14	13.1	16.3	18.1	19.1	14.8	17.1	18.9	20.3	21.5	22.4	23.1
BSD160/200	32	16	7	8.1	9.4	10	8	9.4	11.1	11.9	11.9	14.2	15.5	16.2	13.5	15.4	16.8	17.8	18.6	19.2	19.7
BSD160/240	44	22	7.6	9.1	10.9	11.8	8.7	10.5	12.8	14	13.1	16.3	18.1	19.1	14.8	17.1	18.9	20.3	21.5	22.4	23.1
BSD200/200	32	16	7	8.1	9.4	10	8	9.4	11.1	11.9	11.9	14.2	15.5	16.2	13.5	15.4	16.8	17.8	18.6	19.2	19.7
BSD special 100/80	12	6	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BSD special 120/100	16	8	4	4.3	4.6	4.7	4.7	5.1	5.5	5.7	6.6	7.2	7.5	7.6	7.9	8.4	8.8	9	9.2	9.3	9.4
BSD special 120/130	20	10	4.8	5.2	5.7	5.8	5.6	6.2	6.8	7	8	8.8	9.2	9.4	9.4	10.2	10.7	11.1	11.3	11.5	11.6
BSD special 140/120	20	10	4.8	5.2	5.7	5.8	5.6	6.2	6.8	7	8	8.8	9.2	9.4	9.4	10.2	10.7	11.1	11.3	11.5	11.6
BSD100/240	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BSD120/300	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BSD120/320	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BSD140/200	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BSD140/220	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BSD140/240	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BSD140/260	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BSD140/300	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BSD140/320	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BSD160/160	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BSD160/260	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BSD160/280	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BSD160/300	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BSD160/320	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BSD180/180	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BSD180/220	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BSD180/280	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BSD180/320	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BSD200/240	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BSD200/280	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

Product capacities - Timber to timber - Partial nailing

References	Number of Fasteners		Product characteristic capacities - Timber C24 [kN]
	Header	Joist	R_1.k				R_2.k
	Qty	Qty	CNA4,0x35	CNA4,0x40	CNA4,0x50	CNA4,0x60	CNA4,0x35	CNA4,0x40	CNA4,0x50	CNA4,0x60
BSD A/100	8	4	5.3	6.3	8.2	9.9	4.1	4.9	6.5	7.9
BSD A/120	10	6	7.1	8.4	10.9	13.1	5.9	7.1	9.3	11.2
BSD A/140	12	6	9.5	11.2	14.5	17.2	8	9.5	12.4	14.2
BSD A/160	14	8	11.7	13.8	17.8	21	10.3	12.2	15.8	18.9
BSD A/180	16	8	14.5	17	21.9	23.6	12.8	14.6	17.8	18.9
BSD A/200	18	10	17.1	20.1	25.7	28.3	15.5	18.3	22.2	23.6
BSD A/220	20	10	19.9	22	26.6	28.3	16.6	18.3	22.2	23.6
BSD A/240	22	12	23	25.6	31.1	33	19.9	22	26.6	28.3
BSD A/260	24	12	23.2	25.6	31.1	33	19.9	22	26.6	28.3
BSD A/280	26	14	26.6	29.3	35.5	37.8	23.2	25.6	31.1	33
BSD A/300	28	14	26.6	29.3	35.5	37.8	23.2	25.6	31.1	33
BSD A/320	30	16	29.9	32.9	40	42.5	26.6	29.3	35.5	37.8
BSD120/240	22	12	23	25.6	31.1	33	19.9	22	26.6	28.3
BSD160/200	18	10	17.1	20.1	25.7	28.3	15.5	18.3	22.2	23.6
BSD160/240	22	12	23	25.6	31.1	33	19.9	22	26.6	28.3
BSD200/200	18	10	17.1	20.1	25.7	28.3	15.5	18.3	22.2	23.6
BSD special 100/80	-	-	-	-	-	-	-	-	-	-
BSD special 120/100	8	4	5.3	6.3	8.2	9.9	4.1	4.9	6.5	7.9
BSD special 120/130	10	6	7.1	8.4	10.9	13.1	5.9	7.1	9.3	11.2
BSD special 140/120	10	6	7.1	8.4	10.9	13.1	5.9	7.1	9.3	11.2
BSD100/240	-	-	-	-	-	-	-	-	-	-
BSD120/300	-	-	-	-	-	-	-	-	-	-
BSD120/320	-	-	-	-	-	-	-	-	-	-
BSD140/200	-	-	-	-	-	-	-	-	-	-
BSD140/220	-	-	-	-	-	-	-	-	-	-
BSD140/240	-	-	-	-	-	-	-	-	-	-
BSD140/260	-	-	-	-	-	-	-	-	-	-
BSD140/300	-	-	-	-	-	-	-	-	-	-
BSD140/320	-	-	-	-	-	-	-	-	-	-
BSD160/160	-	-	-	-	-	-	-	-	-	-
BSD160/260	-	-	-	-	-	-	-	-	-	-
BSD160/280	-	-	-	-	-	-	-	-	-	-
BSD160/300	-	-	-	-	-	-	-	-	-	-
BSD160/320	-	-	-	-	-	-	-	-	-	-
BSD180/180	-	-	-	-	-	-	-	-	-	-
BSD180/220	-	-	-	-	-	-	-	-	-	-
BSD180/280	-	-	-	-	-	-	-	-	-	-
BSD180/320	-	-	-	-	-	-	-	-	-	-
BSD200/240	-	-	-	-	-	-	-	-	-	-
BSD200/280	-	-	-	-	-	-	-	-	-	-

Certification

Declaration of Performance (DoP)

uk-dop-e06-0270-issue-6.pdf (97.22 KB)

2018-02-16

uk-dop-e06-0270-issue-5.pdf (42.13 KB)

2017-05-02

uk-dop-e06-0270-issue-4.pdf (42.18 KB)

2015-08-04

75780fe8534b90ce48aebde45823ff74574278a8-pdf.pdf (34.34 KB)

2013-06-20

995c4380357c32ba7cedd75630244e75762cfbf9.pdf (34.88 KB)

2013-03-01

25094a836344f558ba0765b8df770af81e7c45a7.pdf (31.95 KB)

European Technical Assessment (ETA)

eta-060270-sst-rev-9-2024.pdf (14.09 MB)

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors

Select one of our Websites

Connectors

Nails and Screws

Anchor System

Quik Drive

Product Details

Images

Features

Material

Benefits

Application

Applicable materials

Application area

Discontinued Products

Technical Data

Dimensions

Product Dimensions

Product Capacities

Product capacities – Timber to timber – Full nailing - F3 (lateral)

Product capacities - Timber to timber - Partial nailing

Installation

Installation

Installation

Certification

Declaration of Performance (DoP)

European Technical Assessment (ETA)

Environmental Product Declarations (EPD)

BSD100/240

BSD120/240

BSD120/300

BSD120/320

BSD140/200

BSD140/220

BSD140/240

BSD140/260

BSD140/300

BSD140/320

BSD160/160

BSD160/200

BSD160/240

BSD160/260

BSD160/280

BSD160/300

BSD160/320

BSD180/180

BSD180/220

BSD180/280

BSD180/320

BSD200/200

BSD200/240

BSD200/280

BSD100/240

BSD120/240

BSD120/300

BSD120/320

BSD140/200

BSD140/220

BSD140/240

BSD140/260

BSD140/300

BSD140/320

BSD160/160

BSD160/200

BSD160/240

BSD160/260

BSD160/280

BSD160/300

BSD160/320

BSD180/180

BSD180/220

BSD180/280

BSD180/320

BSD200/200

BSD200/240

BSD200/280

2D

3D/3D Simplified

About Simpson Strong-Tie®

Simpson Strong-Tie Poland

Phone
