EBR

Brackets round wood

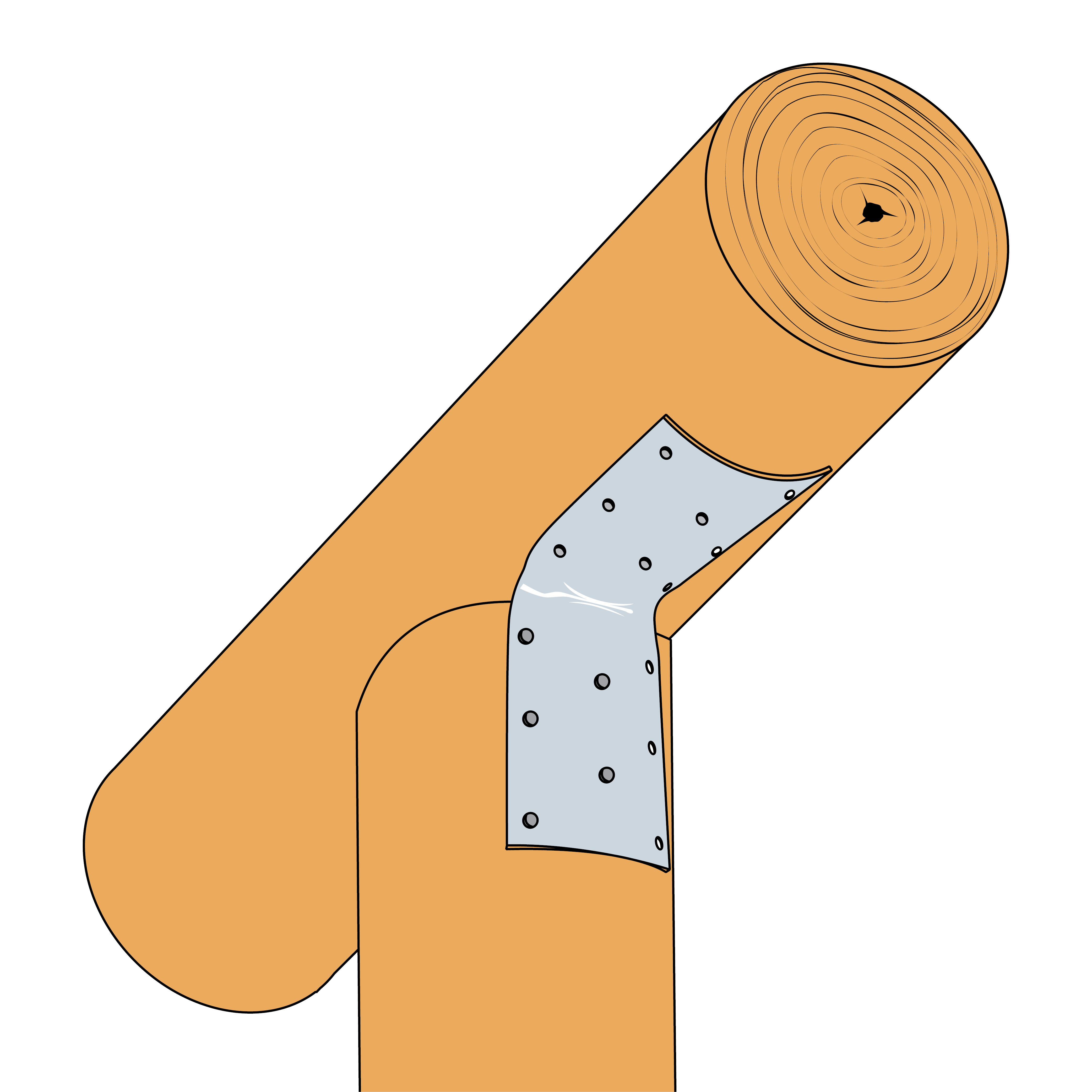

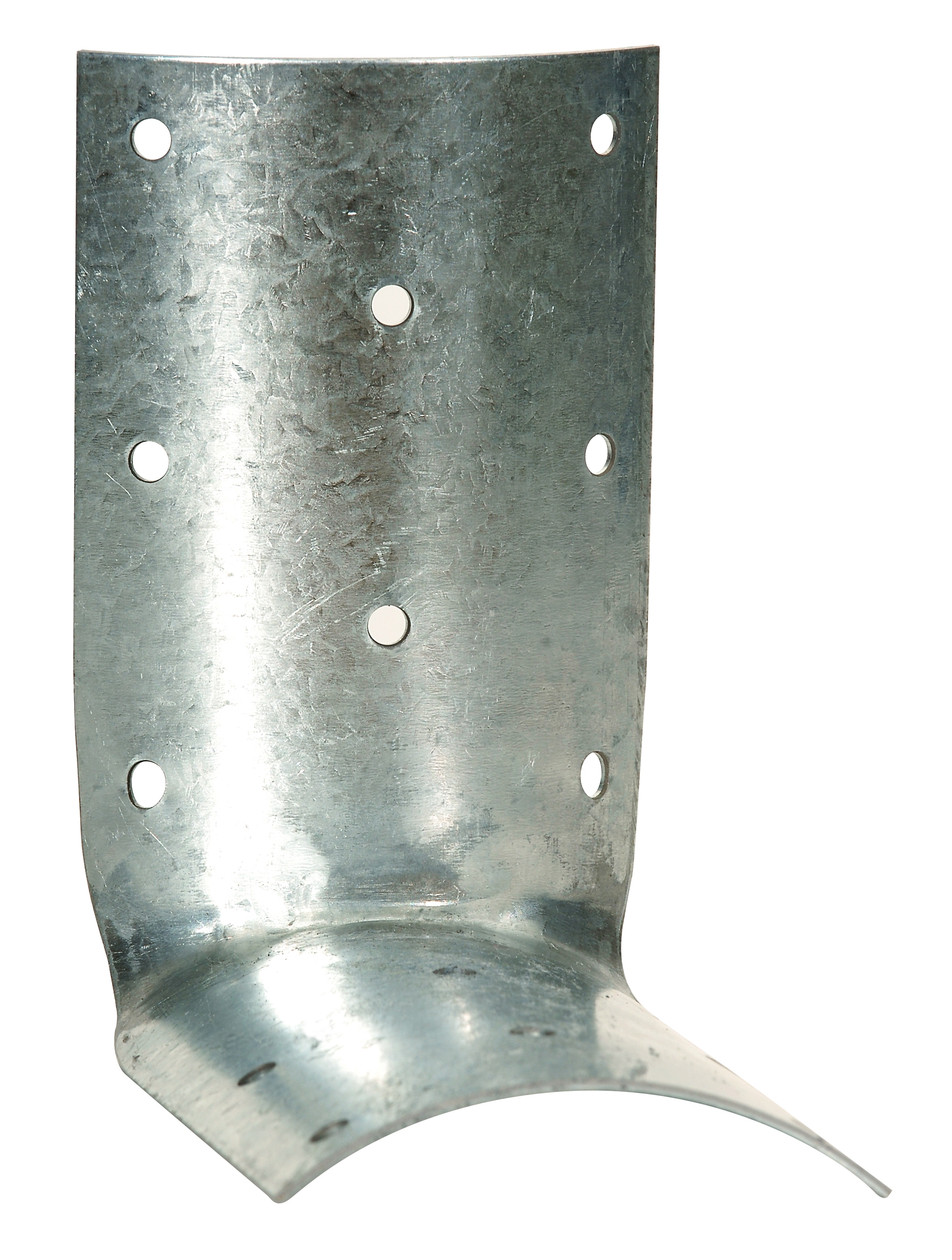

These brackets have been specially developed for installation logs. The curved shape of wings which allow universal use of the spar.

Technical Data Sheet
Service class 2
Service class 2
Electrogalvanized steel Z275
Electrogalvanized steel Z275
EPD
EPD

Product Details

Images


Features

Material

  •  EBR: Galvanized steel S250GD+Z275 according to NF EN 10346.
  • RFC: Steel DD11 according to NF EN 10111. Hot-dip galvanized finish according to NF EN ISO 1461.

Benefits

• Low-cost and labor-sun complex solution for DIY projects from round logs.

Application

Applicatons

  • Supporting member: deep-treated round log.
  • Supported member: solid wood, glued-laminated wood, composite lumber.

Scope

• For home use

Technical Data

Dimensions and drill holes

Dimensions

Dimensions and drill holes
Dimensions and drill holes
ReferenceConnector Dimensions
Product Dimensions[mm]JoistFlange BOtherTimber diameter[mm]
A[mm]B[mm]C[mm]Thickness[mm]RoundRound Weight[kg]
Ø5Ø5
EBR60-R8080571.5440.1160 - 120
EBR80-B123123741.5680.2180 - 140

Installation

Installation

Fasteners

EBR:

  • CNA annular ring-shank nails dia. 4.0 x 50 mm.
  • CSA screws dia. 5 x 50 mm.

RFC:

  • Bolts or lag screws dia. 10 mm.
  • RFC can be used for round logs with diameters of 80 to 120 mm.

Certification

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors
