GAR

Anti-rodent mesh

The Anti Rodent Mesh allow a good ventilation of the cladding and prevent rodent and insect from coming inside.

Technical Data Sheet
Service class 3
Outdoor
ZPRO
EPD

Product Details

Images

MS GAR.jpg

Features

Material

  • Steel S250GD,
  • Finish ZPRO.

Advantages

  • Diameter of the holes are 3mm : it prevent most of the insect to enter,

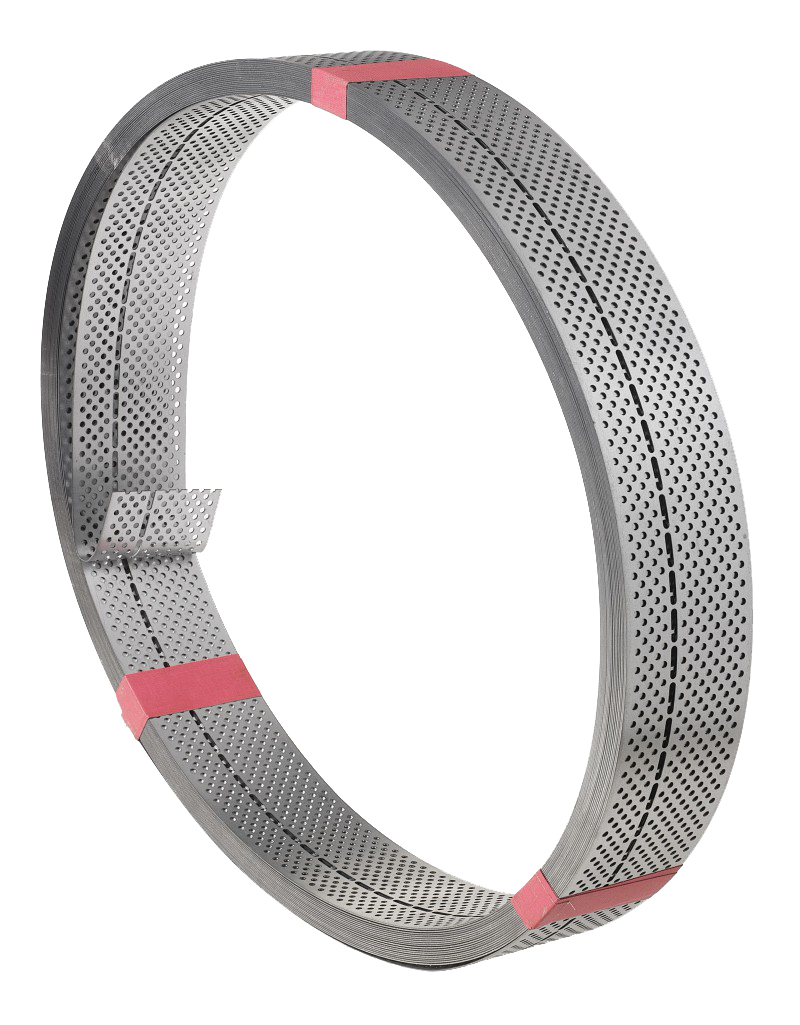

  • Mesh provided in 25m roller: stock and transportation is simplified, reduction of  drop and overlap when in bars,
  • Finish equivalent to stainless steel A2: good resistance to corrosion
  • Conform to french standard DTU41.2 for ventilation.

Application

Header member

  • Solid timber, Engineered timber, glulam.

Intend of Use

  • Timber frame,
  • Cladding.

Discontinued Products

Variant Status Details
There are variants of this product family which have been discontinued and are out of production.
phased out (has Variants which were phased out)

Technical Data

Dimensions


Product Dimensions

References Tun / DB nr. NOB nr. Folded dimensions [mm] Flat dimensions Holes [mm] Packaging [mm] Weight [kg]
A E1 Width [mm] Total Length [m] Thickness [mm] Round Oblong
GAR22/45/25186579151166080452267250.8Ø 3Ø 3 x 12-8
GAR25/42/25186579251166095422567250.8Ø 3Ø 3 x 12-8
GAR-----------
GAR27/40/25--402767250.8Ø 3Ø 3 x 12-7.7
GAR30/70/25--7030100250.8Ø 3Ø 3 x 12-11.5
GAR40/60/25--6040100250.8Ø 3Ø 3 x 12-11.5

Opening areas of the mesh

References Flange B Flange C
Dimensions and drill holes [mm] Ratio d'ouverture [cm² / m] Dimensions and drill holes [mm] Ratio d'ouverture [cm² / m]
GAR22/45/25451132258
GAR25/42/25421042567
GAR27/40/25401022768
GAR30/70/25701763077
GAR40/60/256014840105

Installation

Installation

How to choose

  • GAR22/45/25 :for stud of 22mm or two 22mm = 44mm.
  • GAR25/42/25 : for stud 25 mm or 27 mm or two studs 27+18 = 45 mm.

Complementary notes

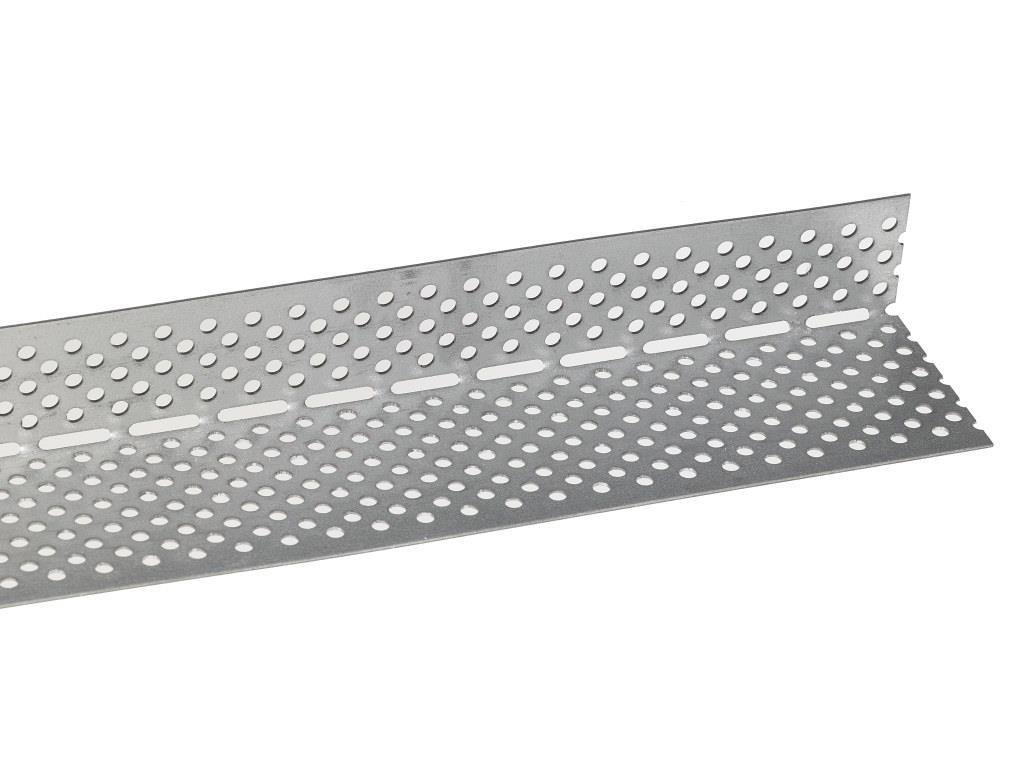

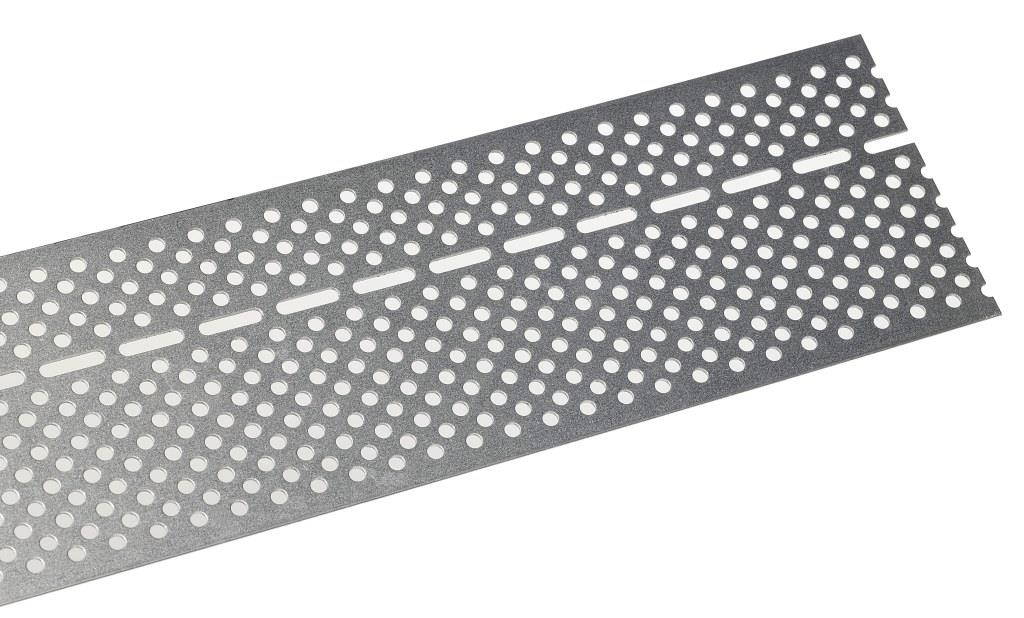

The Anti Rodent Mesh is packaged as 25m roller. It must be cut and folded in house or on site. The oblong holes correspond to the folded line. Gloves and glasses must be used to use this product.

Fasteners

The fasteners used to fix the GAR to the stud are CNA2.5x35

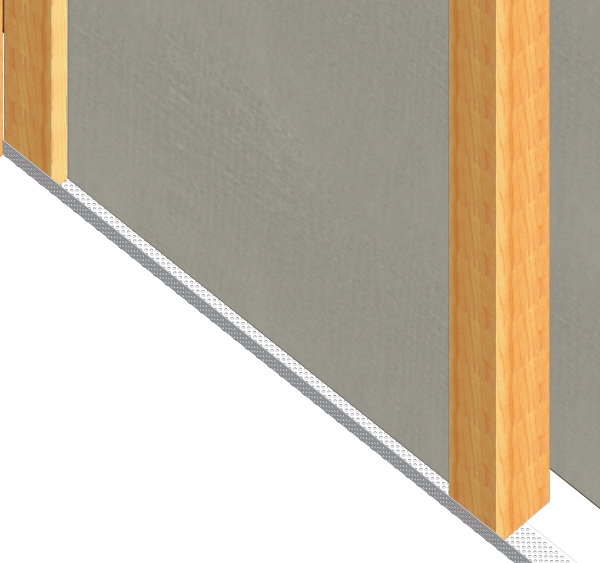

MS GAR.jpg

Certification

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors
