ADR
Angle Bracket
The ADR Light Reinforced Angle Brackets are used to assemble "timber/concrete", "timber/masonry", "timber/steel" or "timber/timber" applications. The long hole in the angle bracket ADR6191 offers possible asjustability during the installation phase.

CE Marking

ETA

Service class 2
EPD

Available in Connector Selector
Product Details
Features
Material
Steel
- S 250 GD +Z 275 acc. DIN EN 10346
Corrosion protection:
- 275 g/m2 on both sides - correspond to a zinc layer of approx. 20 μm
Benefits
- The light reinforcing ensures to build sustainable, one or double sided "timber to timber" or "timber to concrete" applications.
Application
Suitable On
Supporting member:
- solid wood, engineered wood, concrete, steel, etc.
Supported member:
- solid wood, engineered wood
Scope

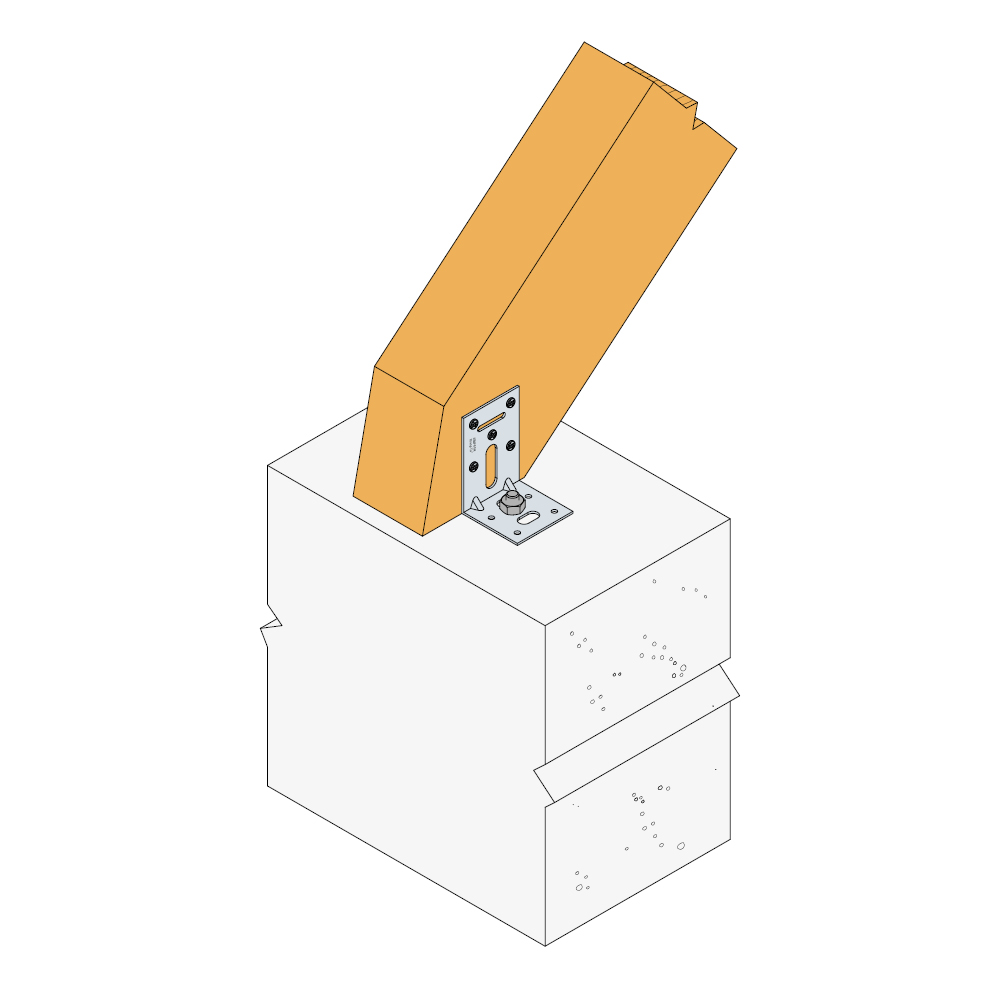

- Double- and single sided connecetions for rafters to beams or rafters to ring beams (concrete).
Technical Data
Product Dimensions
| Reference | Connector Dimensions | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Other | Product Dimensions[mm] | Joist[mm] | Flange B[mm] | |||||||||||||
| Tun / DB nr. | NOB nr. | Weight[kg] | A[mm] | B[mm] | C[mm] | Thickness[mm] | Round | Obround | Round | Obround | ||||||
| Ø5[mm] | Ø10x27 | Ø5x30 | Ø12x40 | Ø5[mm] | Ø12 | Ø12x20 | Ø10.5x20 | Ø10.5x40 | ||||||||

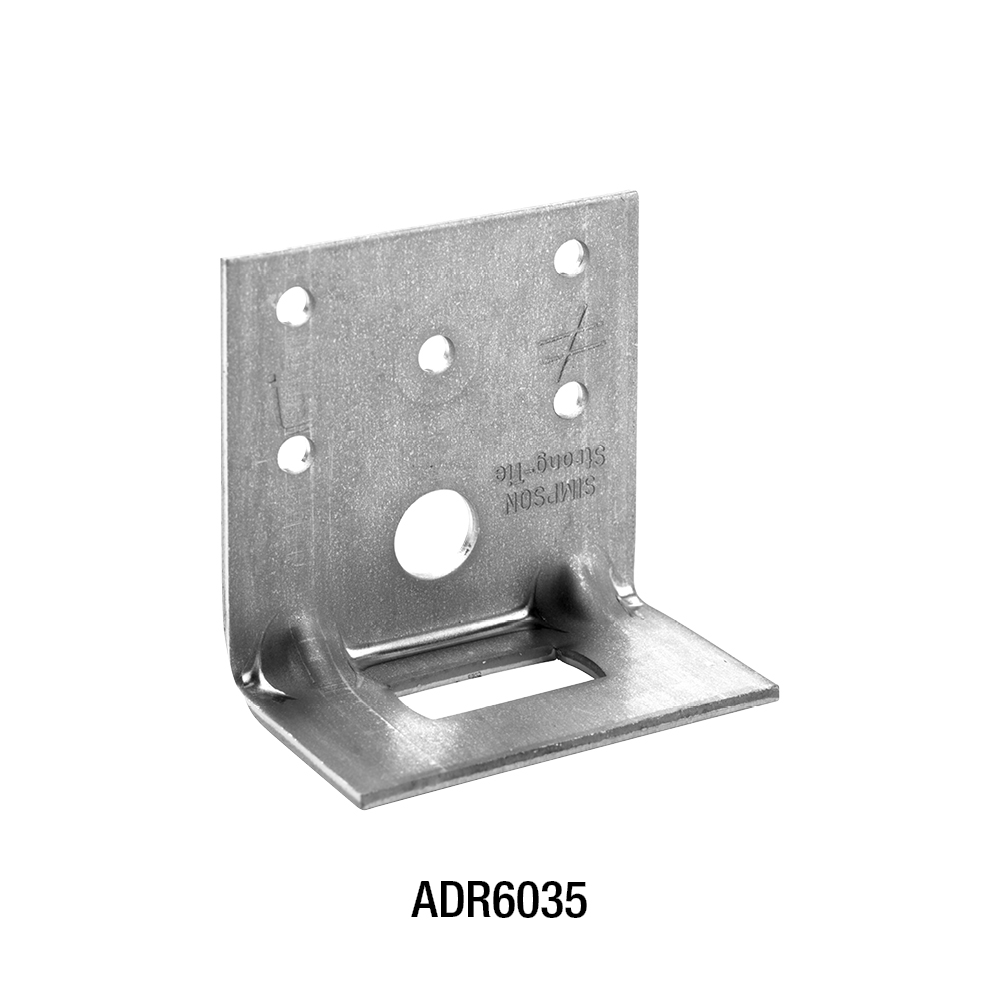

| ADR6035 | 5653357 | 44191662 | 0.1 | 60 | 37 | 60 | 2.5 | - | 1 | - | - | 5 | 1 | - | - | - |

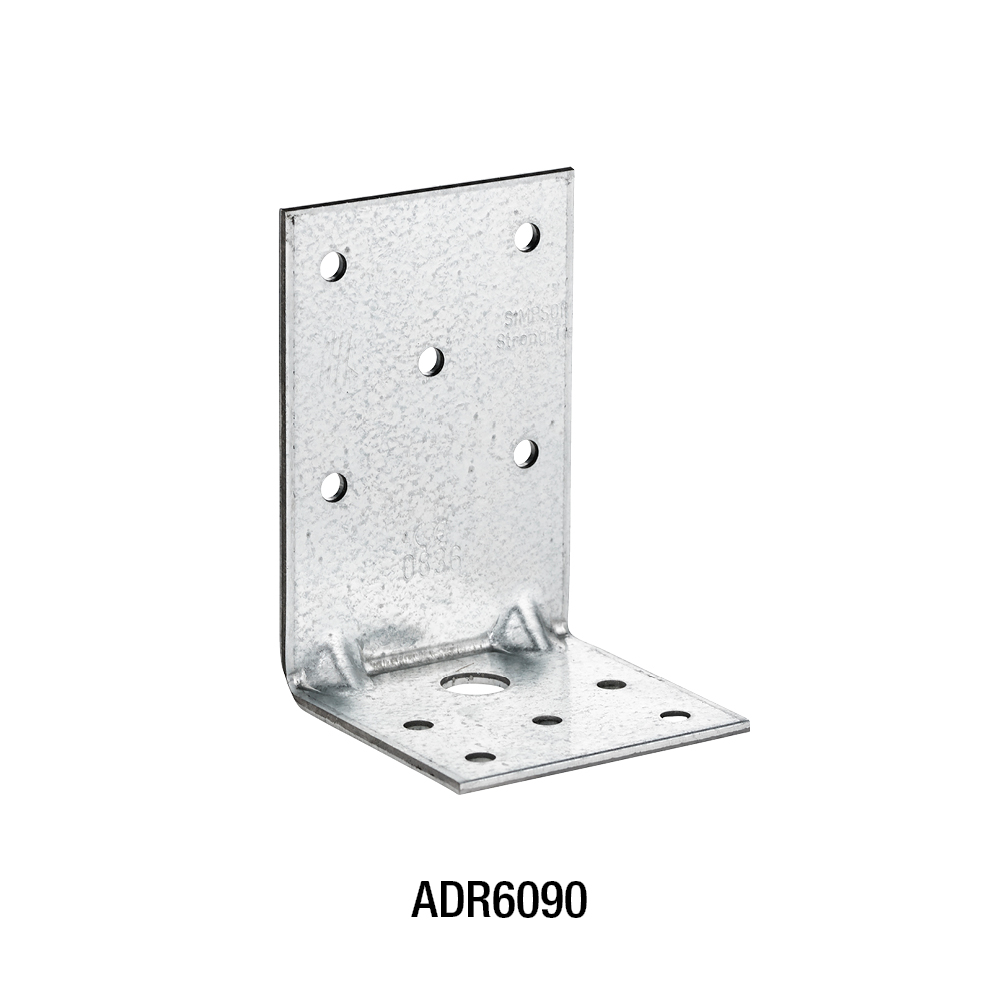

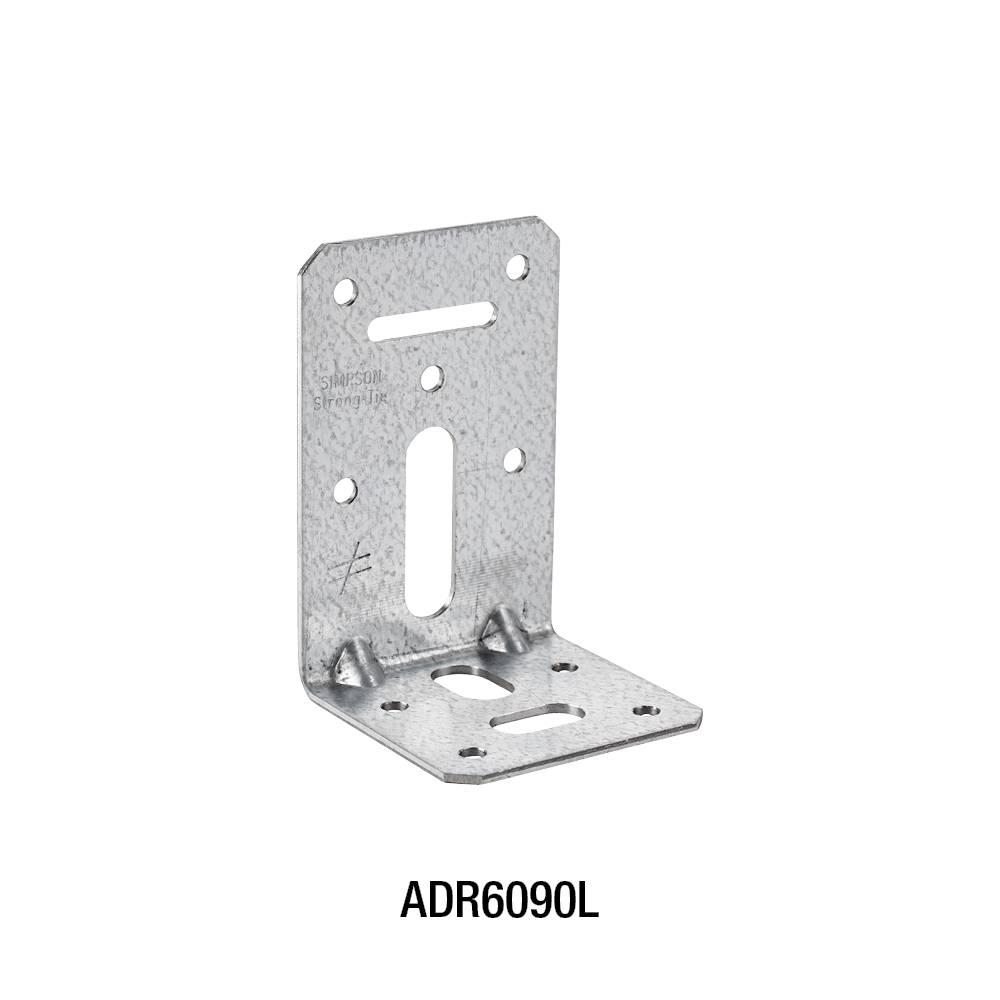

| ADR6090L | 1882590 | 51432776 | 0.13 | 90 | 60 | 60 | 2 | 5 | - | 1 | 1 | 4 | - | 1 | 1 | - |
* Currently without ETA / without CE marking
Product capacities - beam to beam - maximum nailing
| Reference | Angle bracket capacity | |||
|---|---|---|---|---|
| Product capacities - Timber to timber - Beam to beam - Full nailing | ||||
| Number of Fasteners | Characteristic capacity - 2 angle brackets per connection - full nailing[kN] | |||
| Joist | Flange B | R₁,ₖ | ||
| Qty | Qty | CNA4.0x40 | CNA4.0x60 | |
| ADR6090L | 3 | 2 | 2.6 / kmod^0.3 | min [3.6/kmod^0.3 ; 3.0/kmod] |
Check

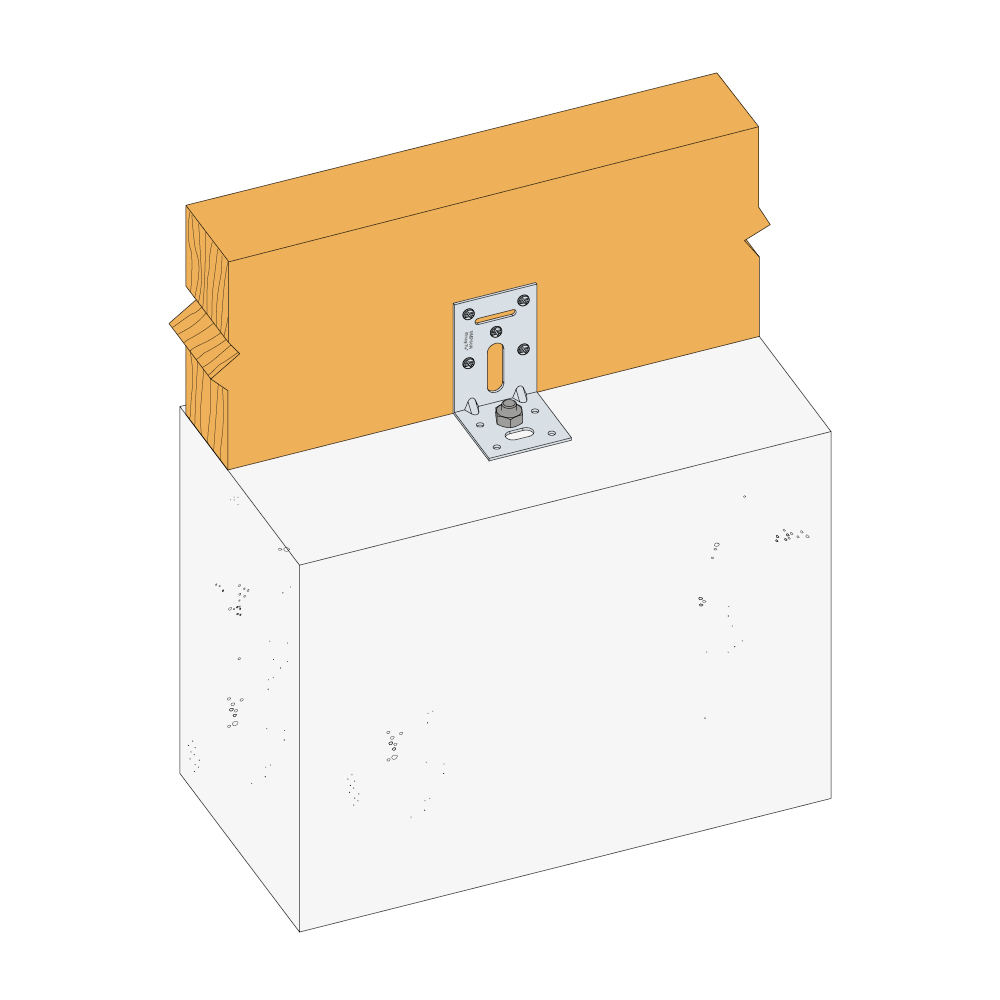

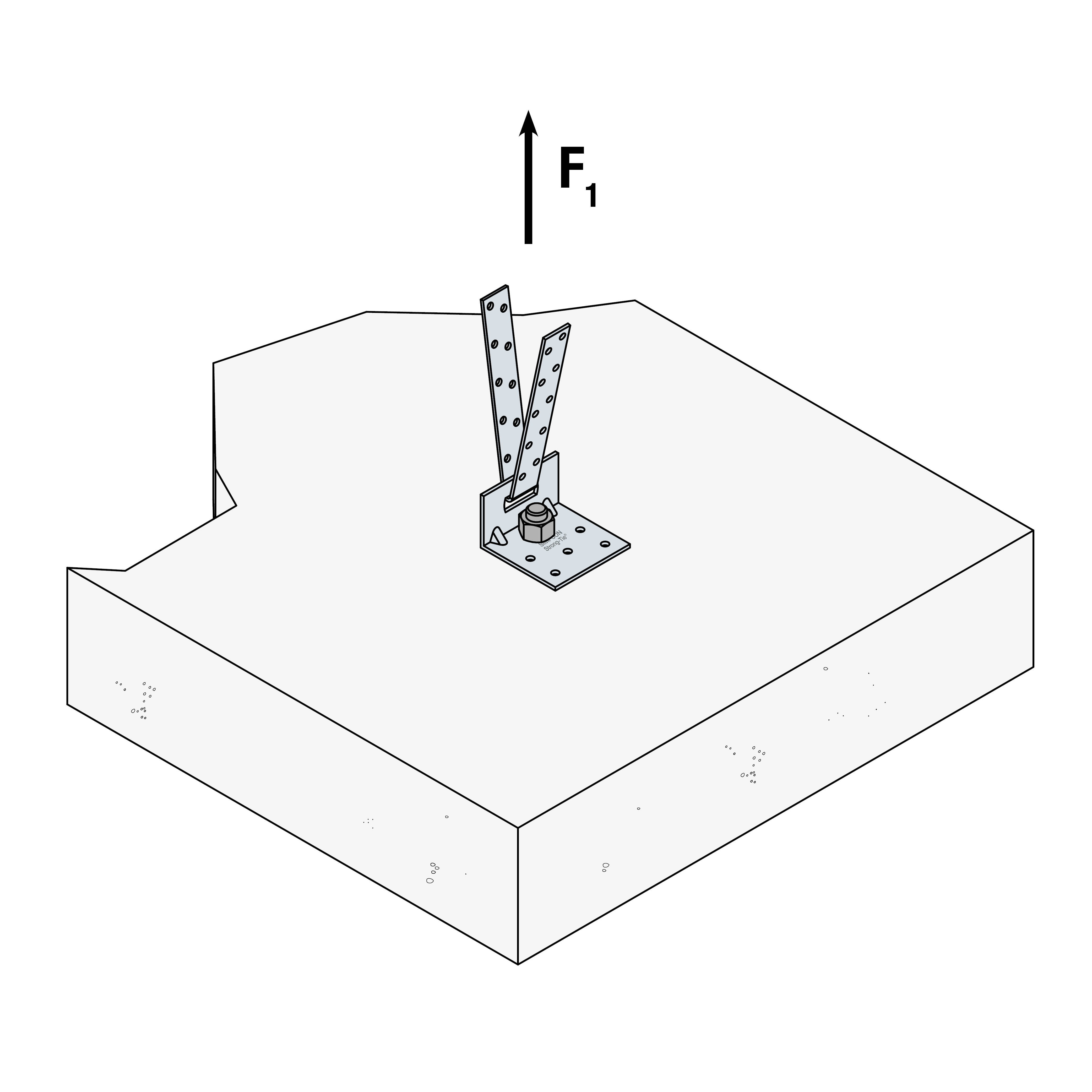

Product capacities - timber to concrete
| Reference | Angle bracket capacity | |||||
|---|---|---|---|---|---|---|
| Product capacities - Timber to Concrete | ||||||
| Number of Fasteners | Characteristic capacity - 2 angle brackets per connection - full nailing[kN] | |||||
| Joist | Flange B | R₁,ₖ | ||||
| Qty | Type | Qty | Type | CNA4.0x40 | CNA4.0x60 | |
| ADR6090L | 5 | CNA | 1 | M10* | min [15.5 ; 9.9/kmod] | 9.9 / kmod |
* bolts e.g. WA, BOAX II or simultaneously, needs to be checked separately.
** load values for a load application point of f = 20 mm
Check
For the Angle bracket needs to be checked:
The check of the fasteners in concrete or steel needs to be done separately.
