AJ
They are suitable for connections wood / timber to the supporting structure. Suitable structures for attachment with a higher discharge force
material




Product Details
Features
Material
Steel quality:
S250GD + Z275 according to DIN EN10346
Corrosion protection:
275 g / m galvanized on both sides 20mm
Benefits
• Powerful angle in various widths
Application
Applicable materials
Wood, wood materials.
Application area
• joints of wooden beams and columns made of wood or concrete
Technical Data
Dimensions and drill holes
| Reference | Connector Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Other | Product Dimensions[mm] | Joist[mm] | Flange B[mm] | |||||||
| Tun / DB nr. | NOB nr. | Qty per Box | Weight[kg] | A[mm] | B[mm] | C[mm] | Thickness[mm] | Round | Round | |
| Ø5[mm] | Ø5[mm] | |||||||||
| AJ60416 | 5653126 | 43910818 | 50.0 | 0.43 | 164 | 84 | 60 | 4 | 8 | 7 |
| AJ80416 | 5653324 | 22998686 | 25.0 | 0.59 | 164 | 84 | 80 | 4 | 11 | 9 |
| AJ99416 | 5653332 | 28994275 | 25.0 | 0.72 | 164 | 84 | 100 | 4 | 12 | 11 |

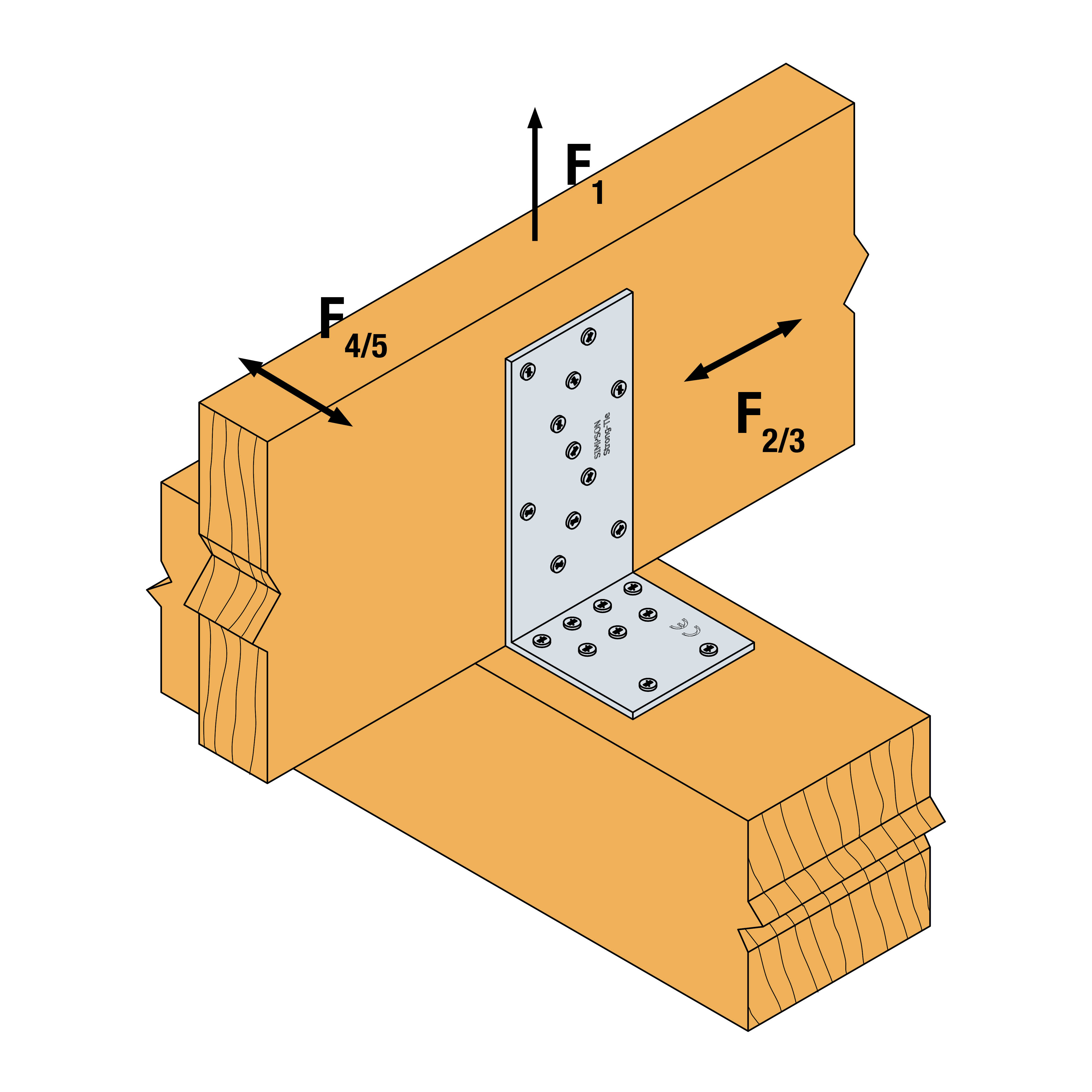

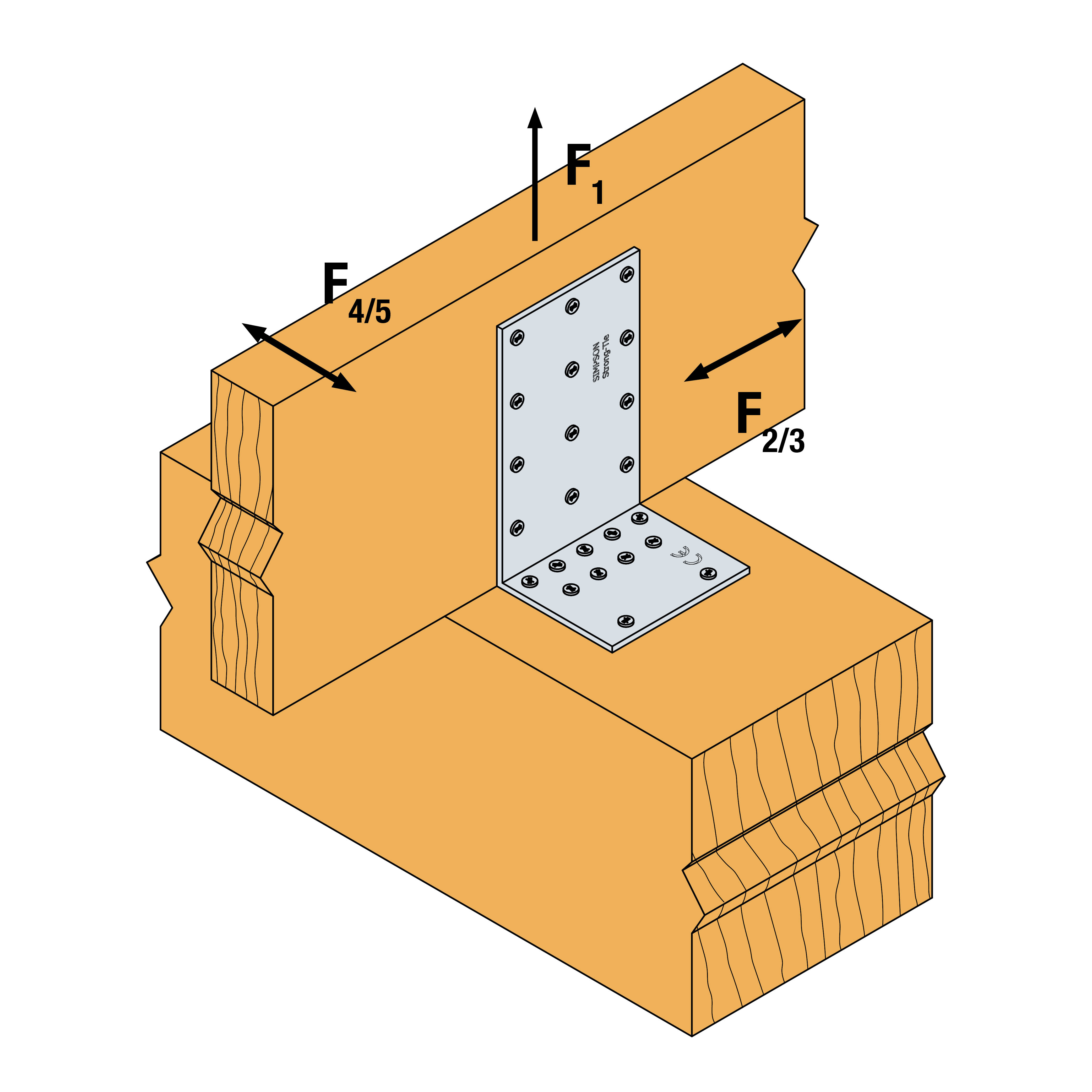

Load bearing table (Characteristic values) - Beam to beam assembly
| Reference | Angle bracket capacity | ||||||
|---|---|---|---|---|---|---|---|
| Number of Fasteners | Characteristic capacities - 2 angle brackets per connection[kN] | ||||||
| Joist | Flange B | R₁,ₖ | R₂/₃,ₖ | R4/5,k * | |||
| Qty | Type | Qty | Type | ||||
| AJ60416 | 8.0 | CNA4.0x40 | 7.0 | CNA4.0x60 | 11.1/kmod^0.2 | 7.8 | 4.1/kmod^0.25 |
| AJ80416 | 11.0 | CNA4.0x40 | 9.0 | CNA4.0x60 | 15.3/kmod^0.2 | 10 | 5.5/kmod^0.25 |
| AJ99416 | 12.0 | CNA4.0x40 | 11.0 | CNA4.0x60 | 19.3/kmod^0.1 | 13 | 7.1/kmod^0.25 |
* Determined for a beam width b = 75 mm and an essentricity e = 130 mm.
kmod is the modification factor for the load group where the required carrying capacity belongs.
** Nailing: Full nailing with CNA4,0x40 nails in the vertical flange and CNA4,0x60 nails in the horisontal flange. If the purlin is prevented in rotation, the carrying capacity R1,k og R2/3,k in an assembly with a single angle bracket be half the table value. If the purlin can rotate, refer to ETA.
Example
2 angle brackets AJ99416 in a beam-beam assembly, load group: medium; kmod = 0,8. Purlin width b = 100 mm. Full nailing with 12 x CNA4,0x40 nails in the vertical flange and 11 x CNA4,0x60 nails in the horisontal flange.
Loads: F1,d = 6,7 kN og F5,d = 1,8 kN acting e = 160 mm above the beam. The carrying capacity must be found in the ETA as the purlin width b and the distance e are different from the values.
R1,d = table value x kmod / γM = (19,3 / 0,80,1) x 0,8 / 1,35 = 11,7 kN
R5,d = min. ((7,93 x 100 + 174) / (160-4) / 1,35 = 4,6); (10,9 / 1,35 = 8,1)) = 4,6 kN
