DSZ

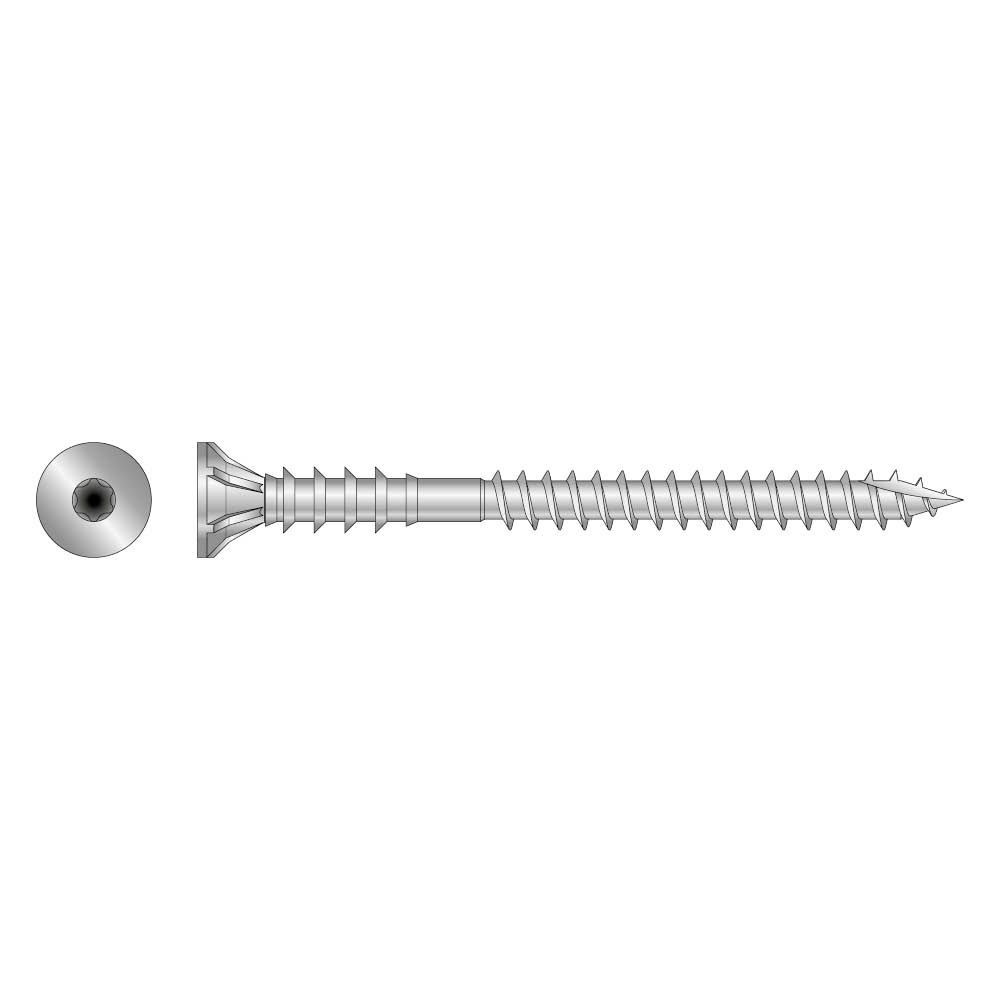

Adjustable Door Frame Screw

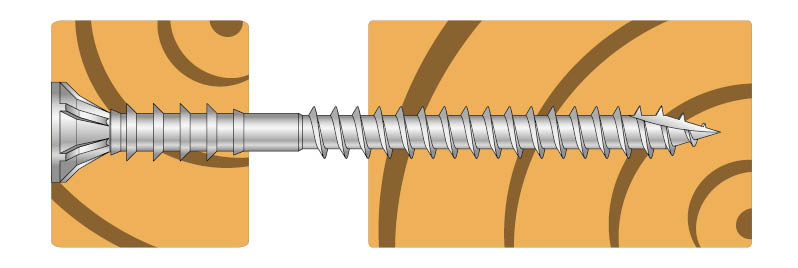

This special frame screw is used for indoor installation of interior door frames with pre-drilled holes - Ø14 mm from one side and Ø6 mm from the other. The anchor thread under the head grips the woodwork, allowing the frame to be adjusted both inwards and outwards.
CE Marking
Service class 2
Electro-galvanized steel
Indoor
EPD
Product Details
Images
Features
Technical Data
Dimensions
Product dimensions
| References | Item code | Fastener dimensions [mm] | Weight [kg] | ||||||
|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | lg | lp | bit | |||
| DSZ6.0X60 | 75552 | 6 | 60 | 11.7 | 4 | 30 | 20 | T-25 | 0.011 |
| DSZ6.0X70 | 75553 | 70 | 11.7 | 4 | 40 | 20 | T-25 | 0.012 | |
| DSZ6.0X80 | 75554 - 75711 | 80 | 11.7 | 4 | 50 | 20 | T-25 | 0.012 | |
| DSZ6.0X90 | 75712 - 75555 | 90 | 11.7 | 4 | 60 | 20 | T-25 | 0.018 | |
| DSZ6.0X100 | 75556 | 100 | 11.7 | 4 | 60 | 20 | T-25 | 0.02 | |
| DSZ6.0X110 | 75557 | 110 | 11.7 | 4 | 60 | 20 | T-25 | 0.022 | |
| DSZ6.0X120 | 75558 | 120 | 11.7 | 4 | 60 | 20 | T-25 | 0.022 | |
| DSZ6.0X130 | 75559 | 130 | 11.7 | 4 | 60 | 20 | T-25 | 0.024 | |
