Connectors

Angle brackets

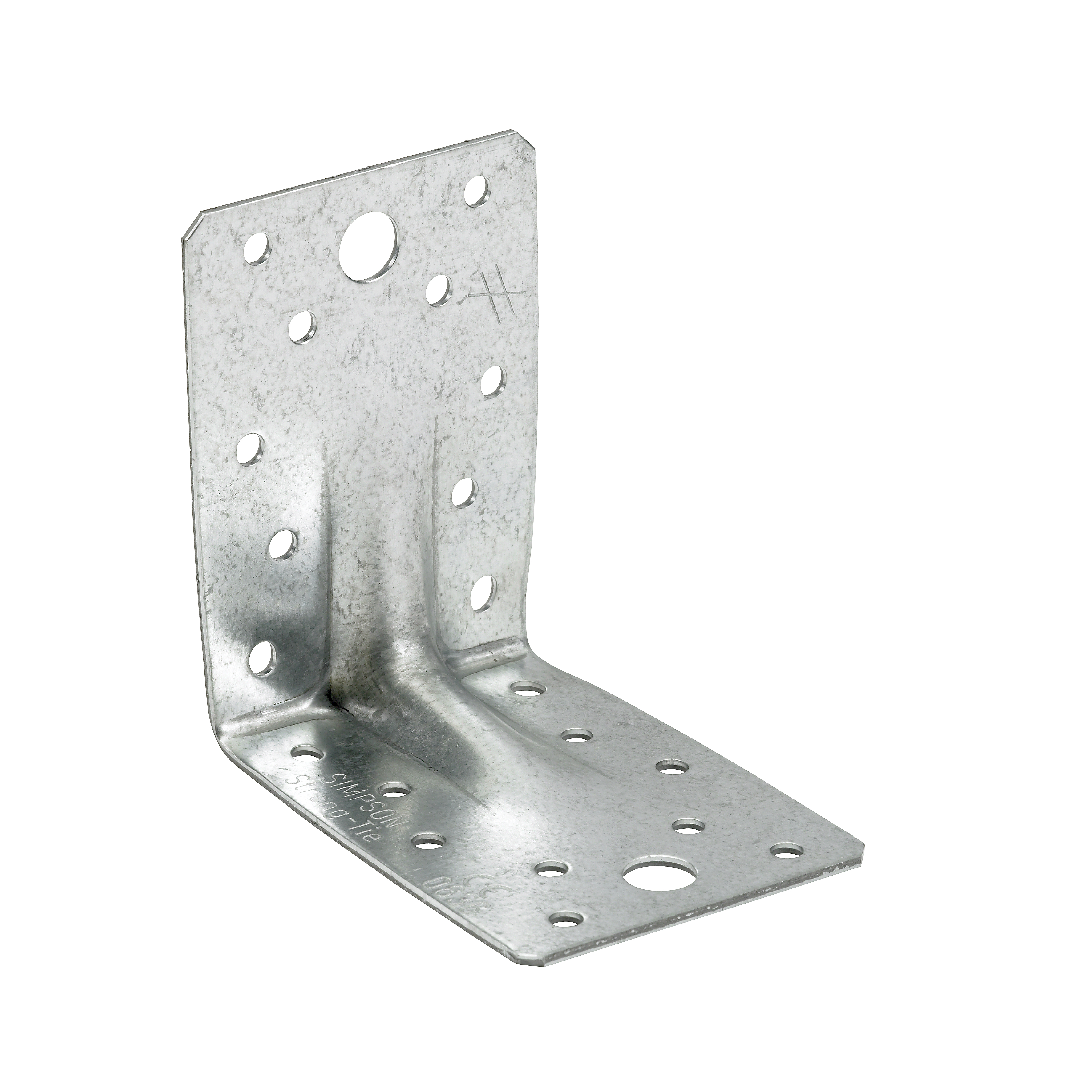

ACR

ACR 7015,9020 a 10520

Angles are suitable for connections wood / wood in supporting structures.

Technical Data Sheet

CE Marking

ETA

Service class 2

Electrogalvanized steel Z275

EPD

Available in Connector Selector

Product Details

Images

ABR beam beam montage.jpg

ABR column beam montage

Features

Material

Steel quality:
• S250GD + Z275 according to DIN EN10346

Corrosion protection:
• 275 g / m galvanized on both sides 20mm

Benefits

• Lightweight but strong connection

Application

Applicable materials

Wood, wood products, concrete

Application area

• Wood

Technical Data

Product Dimensions

Dimensions

Product Dimensions

Product Dimensions

Reference	Connector Dimensions
	Other				Product Dimensions[mm]				Joist[mm]			Flange B[mm]
	Tun / DB nr.	NOB nr.	Qty per Box	Weight[kg]	A[mm]	B[mm]	C[mm]	Thickness[mm]	Round			Round
	Tun / DB nr.	NOB nr.	Qty per Box	Weight[kg]	A[mm]	B[mm]	C[mm]	Thickness[mm]	Ø5[mm]	Ø8.5[mm]	Ø11[mm]	Ø5[mm]	Ø8.5[mm]	Ø11[mm]
ACR7012	1553154	45562277	50.0	0.065	70	70	55	1.3	6	1	-	6	1	-
ACR7015	1553155	45562580	50.0	0.081	70	70	55	1.5	6	1	-	6	1	-
ACR9012	1553157	45485046	50.0	0.1	88	88	65	1.3	10	1	-	10	1	-
ACR9020	1553162	45485065	50.0	0.17	88	88	65	2	10	-	1	10	-	1
ACR10515	1553142	45470914	50.0	0.2	105	105	90	1.5	10	-	3	14	-	1
ACR10520	1553147	45561914	50.0	0.27	105	105	90	2	10	-	3	14	-	1

Product capacities - beam to beam - full nailing

Product capacities - beam to beam - full nailing

Reference	Angle bracket capacity
	Product capacities - Timber to timber - Full nailing
	Number of Fasteners		Characteristic Capacities - Timber C24 - 2 angle brackets per connection[kN]
	Joist	Flange B	R₁,ₖ		R2,k = R3,k	R4,k = R5,k
	Qty	Qty	CNA4.0x35	CNA4.0x60	CNA4.0x60	CNA4.0x60
ACR7012	4.0	6.0	3.2	-	-	-
ACR7015	4.0	6.0	3.9	8.9	7.3	min ( ( (3.54xb) + 200 / kmod^0.6 ) / e ; 13.2 )
ACR9012	8.0	10.0	7.9	-	-	-
ACR9020	8.0	10.0	9.2	13.3	11.9	min ( ( ( 8xb ) + 343 / kmod ) / e-10.7 ; 14.5/kmod^0.15 )
ACR10515	10.0	14.0	13	-	-	-
ACR10520	10.0	14.0	13.4	17.9	20.3	min ( ( ( 15.6xb ) / kmod^0.6 + (556/kmod) ) / e-10.7 ; 21.2/kmod^0.15 )
