AB55365S

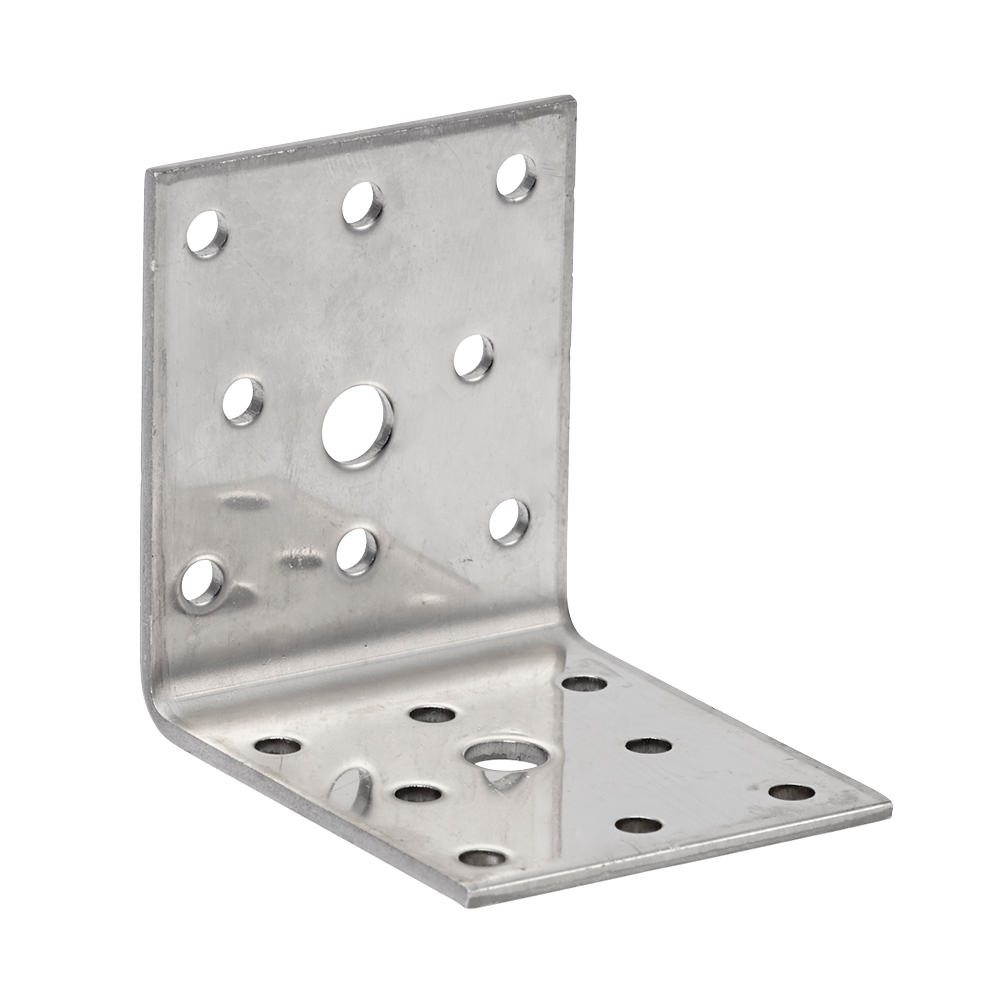

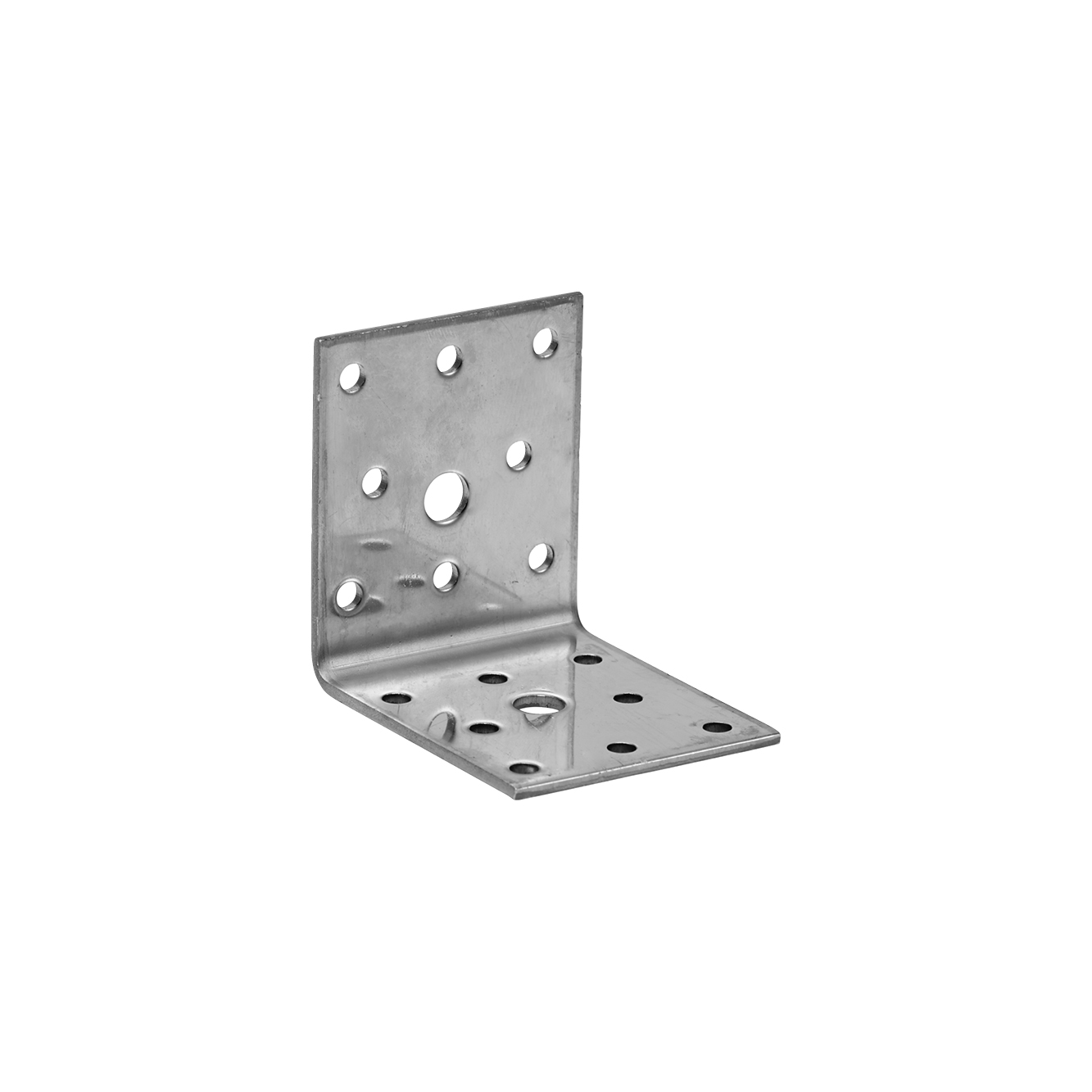

AB55365S - stainless steel bracket
Suitable for joining wood to wood or wood-concrete joints, for uniform load is recommended to use two brackets on each link
Service class 3
Stainless
EPD
Product Details
Images
Features
Application
Technical Data
Product Dimensions
Dimensions
| Reference | Connector Dimensions | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Other | Product Dimensions[mm] | Joist | Holes Flange B | |||||||||
| Tun / DB nr. | NOB nr. | Qty per Box | Weight[kg] | A[mm] | B[mm] | C[mm] | Thickness[mm] | Round | Round | |||
| ∅[mm] | Ø8.5[mm] | Ø5[mm] | Ø8.5[mm] | |||||||||
| AB55365S-B | 1454180 | 43893844 | 100.0 | 0.13 | 65 | 65 | 55 | 2.5 | 8 | 1 | 8 | 1 |
